- Description

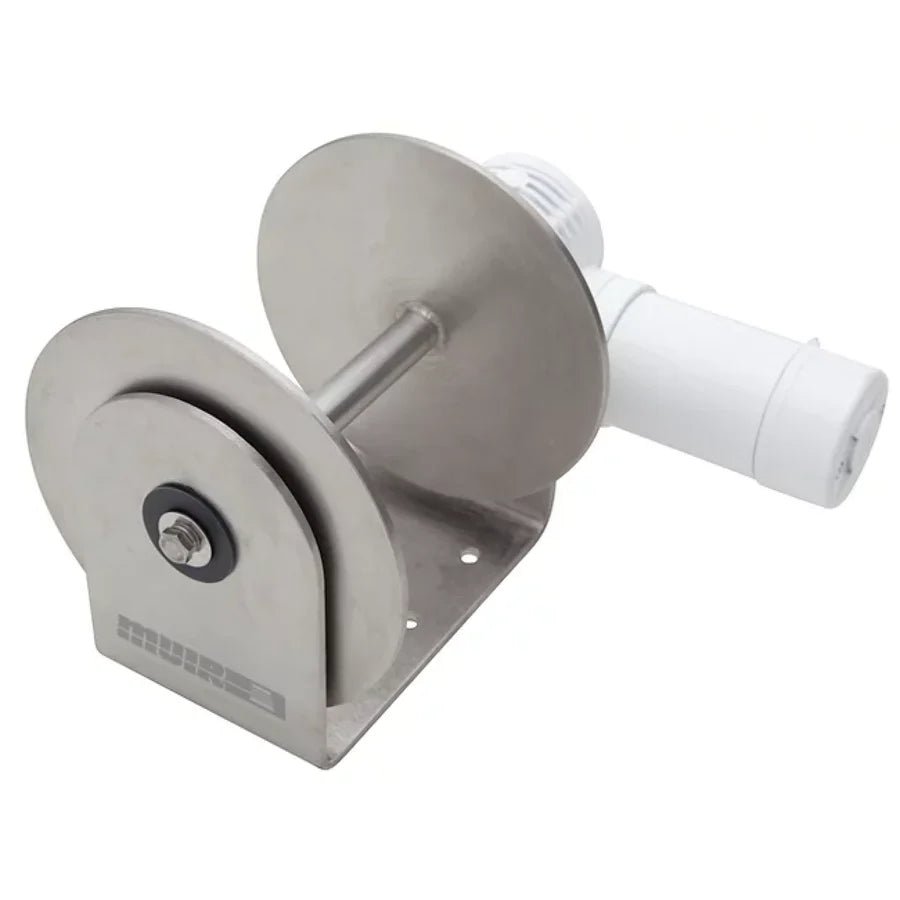

The Muir DFF08 Free Fall Drum Winch is a compact and efficient anchoring system designed for vessels between 5 and 8 metres (16–28 feet). It features a marine-grade 316 stainless steel drum, a heavy-duty dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DFF08 is ideal for boats requiring quick anchor deployment with minimal effort, making it suitable for recreational and light-commercial applications.
This package includes the full 12-volt DC configuration with an 800-watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DFF08 provides power-up operation and manual free fall deployment, allowing fast anchor release when needed. It is designed to handle 6mm or 8mm chain and 8mm rope, with drum capacity suitable for mid-size vessel anchoring systems.
Specifications
Model DFF08. Vessel length 5–8m (16–28ft). Power supply 12V DC. Motor output 800W. Circuit breaker requirement 100A (12V). Working load 60kg at 33m/min. Maximum load 180kg at 7m/min. Maximum line speed 33m/min. Chain size 6mm (1/4”) or 8mm (5/16”). Rope size 8mm (5/16”). Drum capacity 100m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 15–16kg. Oil-bath worm drive gearbox. Power-up operation with manual free fall capability.
Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.
The Muir DFF08 Free Fall Drum Winch is a compact and efficient anchoring system designed for vessels between 5 and 8 metres (16–28 feet). It features a marine-grade 316 stainless steel drum, a heavy-duty dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DFF08 is ideal for boats requiring quick anchor deployment with minimal effort, making it suitable for recreational and light-commercial applications. This complete 12-volt DC package includes an 800-watt motor, 100A circuit breaker, reversing solenoid, and toggle helm switch. The DFF08 provides power-up operation and manual free fall deployment, allowing fast anchor release when needed. It handles 6mm or 8mm chain and 8mm rope, with drum capacity suitable for mid-size vessel anchoring systems. Specifications: Model DFF08. Vessel length 5–8m (16–28ft). Power supply 12V DC. Motor output 800W. Circuit breaker requirement 100A (12V). Working load 60kg at 33m/min. Maximum load 180kg at 7m/min. Maximum line speed 33m/min. Chain size 6mm (1/4") or 8mm (5/16"). Rope size 8mm (5/16"). Drum capacity 100m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 15–16kg. Oil-bath worm drive gearbox. Power-up operation with manual free fall capability. Standard Package Includes: Circuit breaker and mounting panel, reversing solenoid kit, helm toggle switch and panel, deck mounting studs and fasteners, installation and operation booklet.
