- Description
The

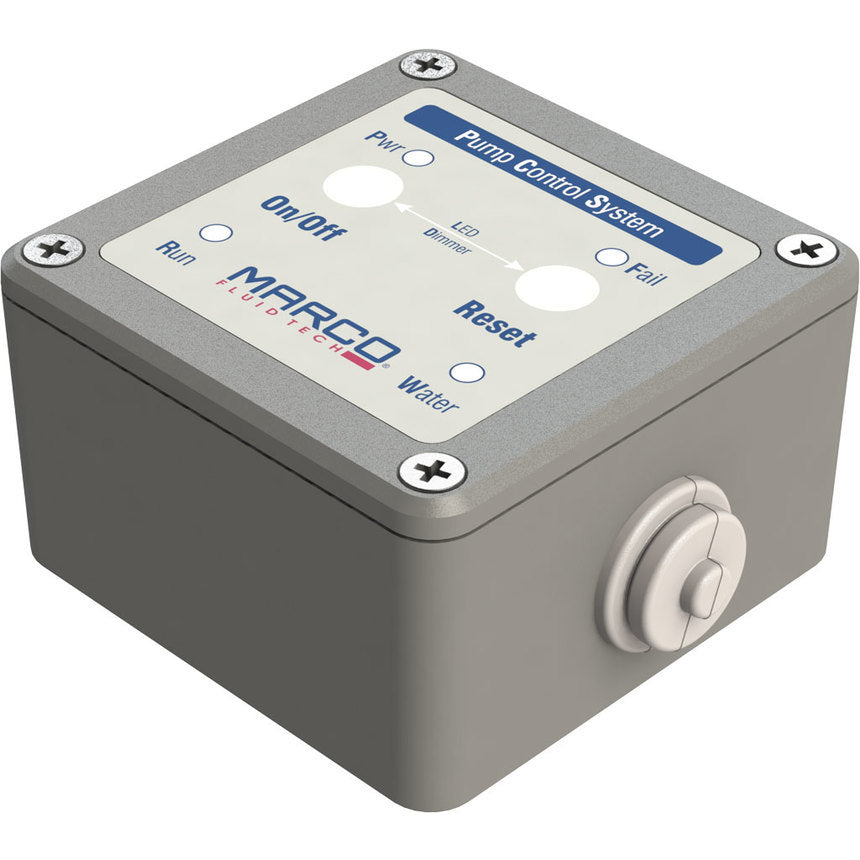

PCS Pump Control Panel
by Marco is a control panel for electronic pumps that allows one to remotely monitor the
operation of the pump and interact with it.
It is possible to
see when the pump is On and if there is still liquid to be transferred.
Moreover, in case of arrest due to the end of liquid or overload, you can
reset the alarm and restart the system without having to turn off the
power. Finally, you can turn Off and On the pump with the simple push of
a button.
The panel can be mounted or recessed in a circular hole of
diameter 70 mm, or with external mounting by fixing the provided square
box with two screws. To operate simply connect the pump with the 3m
cable supplied or another 4-wire phone cord and double-ended RJ11 / 6.
In the back there is a terminal block that allows you to replicate the
buttons and LEDs of the panel on an external circuit: this allows you to
individually control the features on the dashboard or in a device
designed by third parties.
