- Description

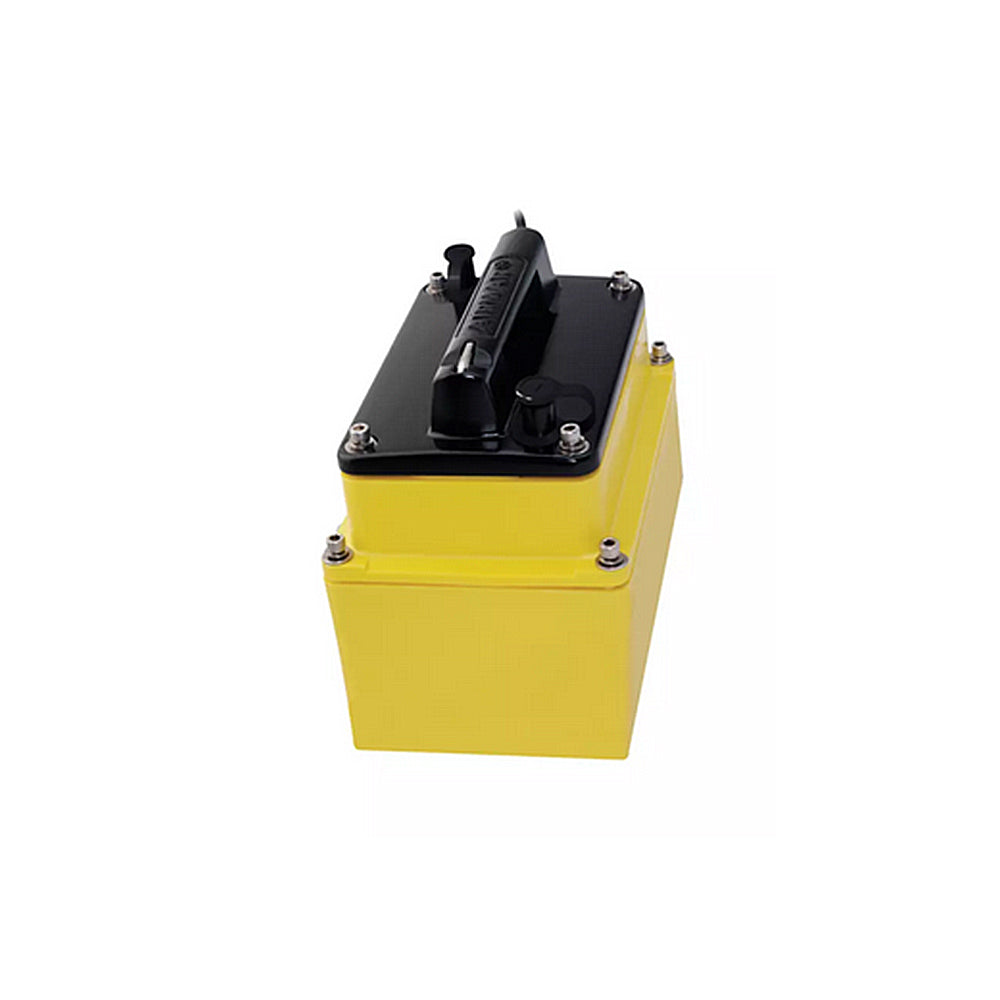

The M265 is an outstanding in-hull option with 8 internal ceramics and up to 117kHz of total CHIRP range. The in-hull installation eliminates the need to drill any holes in the hull, while accommodating a large range of dead rise angles. The high frequency provides excellent shallow water resolution.
The transducer is installed in the included tank, which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265 is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
The M265 is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570, and legacy CHIRP sonar modules.
Details
- Max Depth (Ft): 3,000 (L) / 1,500 (M)
- Frequency (KHz): 42-65 (L) / 85-135 (M)
- Beam Width: 25/16 Degrees (L) / 16/11 Degrees (M)
