- Description

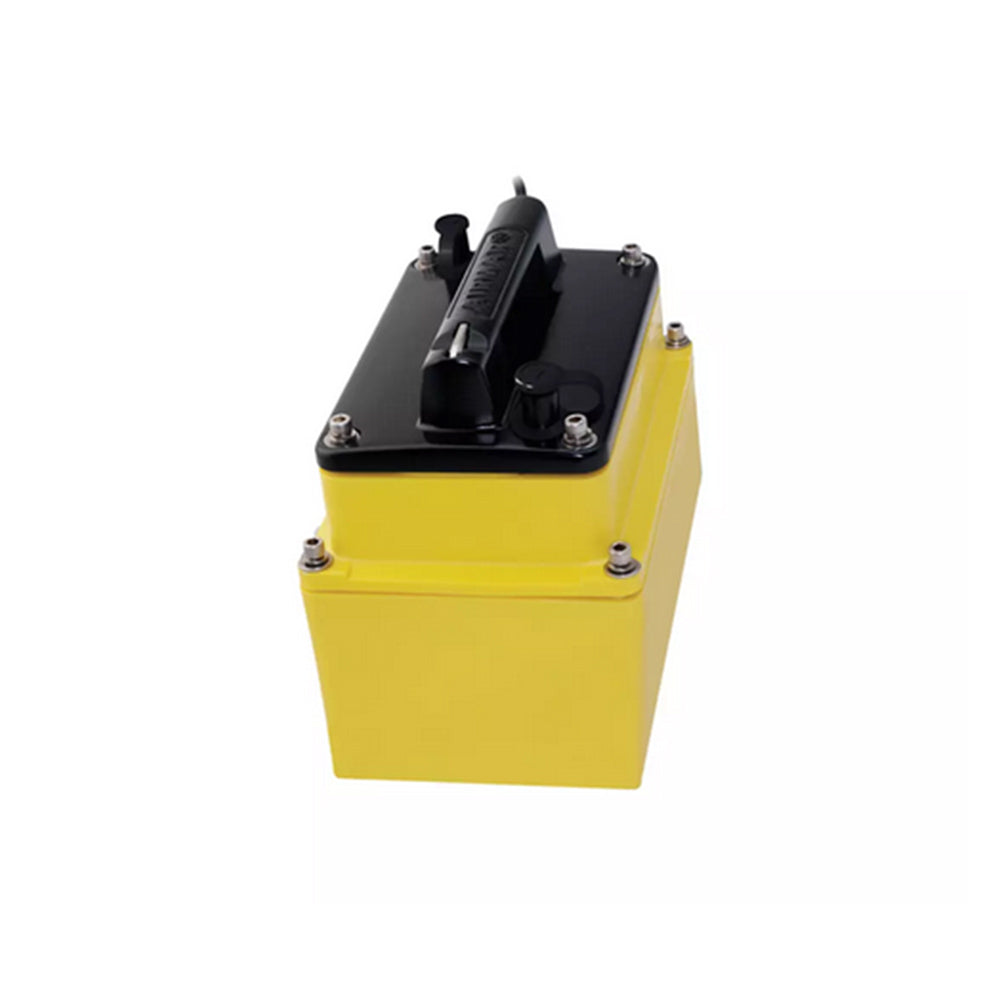

The M260 in-hull transducer offers all-out fishfinding performance and simple installation. Optimal fishfinder performance no longer requires drilling a hole in the hull! The M260 can transmit and receive through solid fiberglass, displaying sharp, detailed images. Track the bottom at speeds exceeding 30 knots (34 MPH). Installation simply requires adhering the tank to the inside of the vessel, leaving a clean and smooth hull exterior.
The M260 is designed with a 200 kHz element, which provides performance resulting in higher resolution without sacrificing sensitivity. Combined with a seven-element 50 kHz array, this in-hull has excellent deep-water detection. Because the M260 has narrow beams at both frequencies, separation of individual targets and the ability to distinguish between fish and the bottom make finding fish easy.
The M260 comes fitted with a Raymarine 8-pin "DSM-style" connector that is directly compatible with the CP370 sonar module and legacy CP300, DSM300, DSM30, and DSM250 modules.
M260 can be adapted to work with other systems using optional transducer adapter cables, sold separately.
Model: A66089
