- Description

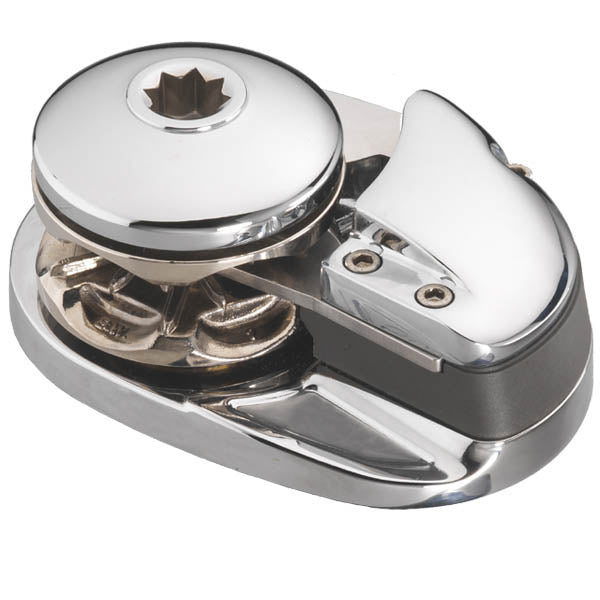

LOFRANS PROJECT X2 WINDLASS LO-PROFILE 1000W 12V
Motor:
1000 Watt
Gypsy Chain Size:
5/16" HT
Rope Size:
5/8" (14mm) 3 strand
Haulage Speed:
59-79ft /min (18-24 m/min)
Current Draw:
80-120 Amp (1200 Watt 12 Volt)
Maximum Pull:
1000 Kg (2200 lb) - 1000 Watt
Weight:
20 Kg (44 lb)
Lofrans Windlass Features
The main shaft is in stainless AISI 431 with a high mechanical strength.
The body of the windlass, the drum, and various components are made in a special aluminum alloy, polished and anodized.
The worm wheel is in alloy bronze - the worm is in 38NCD4 steel.
Screws and outer components are in stainless AISI 304 or AISI 316.
The Lofrans gearbox is made for high mechanical efficiency and is designed for marine use.
The gearbox ratio from 1/50 up to 1/75 is the right compromise between performance and speed.
The long-life oil bath lubrification protects the internal components of the gearbox from wear and tear and reduces the noise.
The gear case is black anodized for long-life protection.
The Lofrans electric motors are manufactured to IP 56 degree of protection (DIN 40 050) - protection against deck water
Shaft, screws, nuts, and cover made in stainless steel
Electric motor case protected by black paint.
Most of Lofrans' electric motors are series-wound. They have the advantage over the less expensive permanent magnet motors to produce an initial starting torque which can be useful in critical situations.
