- Description
Maximum Range:
36NM with 4kW output
Scanner Type:
2’ radome scanner
Display Type:
10.4" color TFT LCD
Safety Features
Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M93D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M506 & M605), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.
DSC
Received DSC exampleAIS
Other vessel AIS information

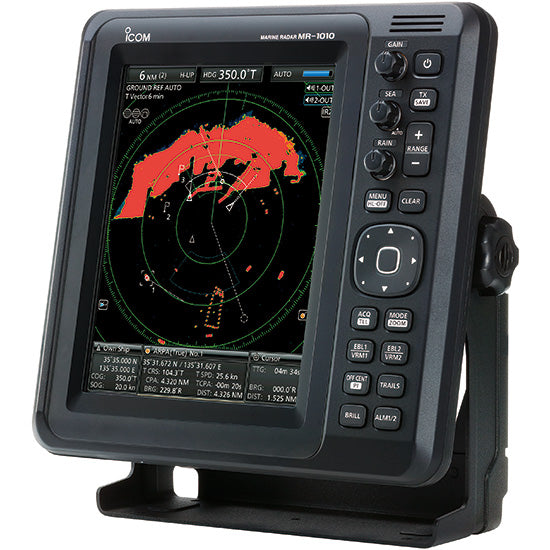

Large Color Display
The MR-1010RII gives approximately a 176° viewing angle. The color RFT LCD (480x640 dots) display offers bright vivid echos with 16 steps gradient intensity. Easily adjust the screen color (day, night and user settings) with the "BRILL" button. In addition, the auto hide information function enlarges radar echoes to size.
LCD Night Setting
Night settingLCD Day Setting
Day setting
Configure various settings through the MR-1010RII’s visually intuitive operation. The language setting is selectable from English, Indonesian, Korean, Spanish, Thai and Vietnamese. The large eight-direction cursor key provides smooth operation even when wearing gloves.
User Color Settings
User color setting menuInitial Menu
Initial menu
Additional Features
Simplified ARPA function helps prevent collision risk with other vessels or objects
TLL (Target Latitude Longitude) function
True trail function
10.2-42V wide DC input to prevent over voltage damage
Two user programmable alarm zones
Optional video output unit
