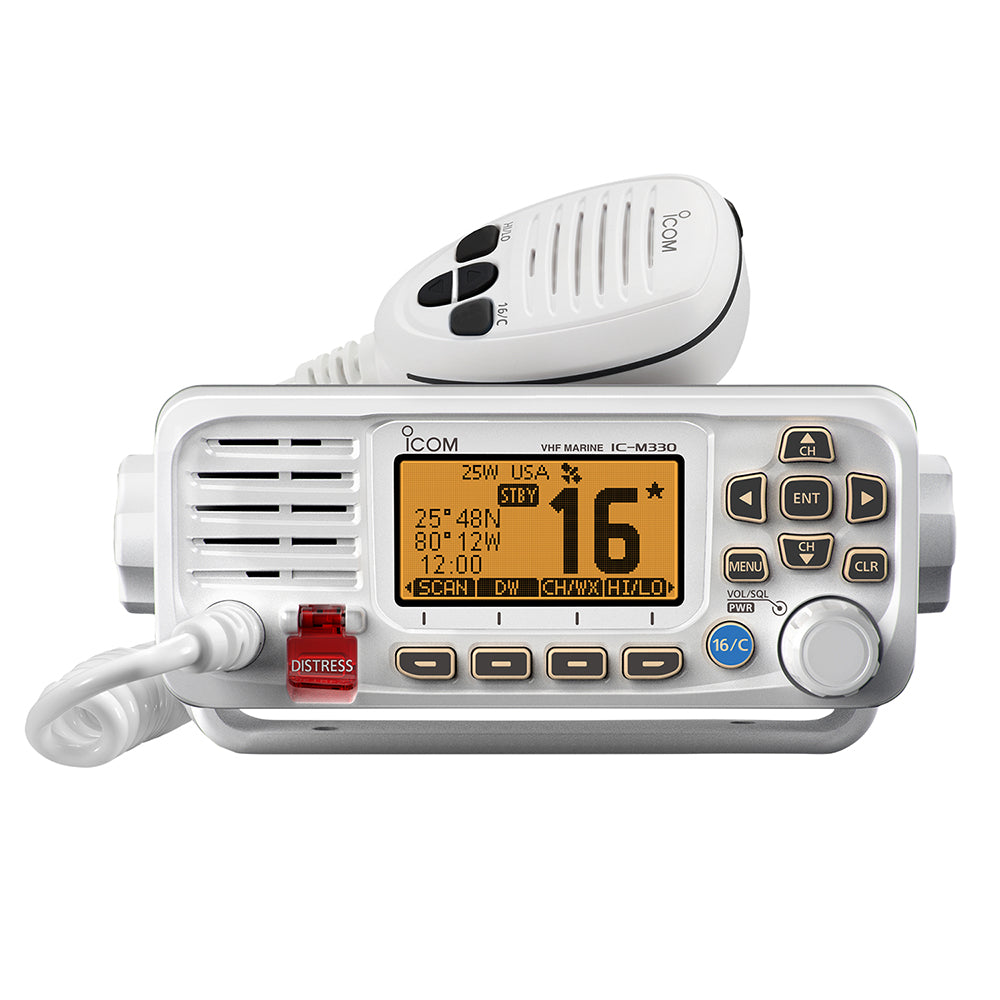

ICOM M330G VHF Radio (White with GPS)
Overview
The ICOM M330G offers the same outstanding performance and feature set as the popular M324 series, now packaged in a compact, space-efficient design. Ideal for vessels with limited dash room, the M330G combines rugged reliability, intuitive operation, and clear communication at an exceptional value. With 25 watts of transmit power, an IPX7 waterproof rating, and Icom’s exclusive AquaQuake™ draining feature, this VHF delivers premium marine performance in any condition.
GPS Capability
The M330G comes equipped with an integrated GPS receiver and an easy-to-install external GPS puck antenna for enhanced accuracy and performance. The compact antenna provides real-time position, bearing, and speed using GPS, GLONASS, and SBAS satellite systems. This precise data is utilized for DSC (Digital Selective Calling) functionality — ensuring fast, reliable distress and position reporting when you need it most.
Compact and Easy to Use
Designed for tight installations, the M330G’s small form factor makes it an excellent choice for smaller vessels. The clear dot-matrix display offers superior visibility, while the combination of soft keys and a directional keypad ensures smooth, intuitive operation. Frequently used functions are assigned to soft keys for one-touch access.
Key Features
- IPX7 submersible protection (1 m depth for 30 minutes)
- AquaQuake™ draining function prevents water-logged speaker distortion
- Common NMEA interface for external GPS/NAV connectivity
- Compatible with MA-500TR Class B AIS transponder
- Tag scan and favorite channel functions
- Dual/Tri-Watch monitoring for CH16 and call channels
- Priority scan function
- Backlit dot-matrix display and illuminated keypad for easy night operation
- External speaker connection supported
- Weather channels with weather alert function
- Supplied HM-235B/W hand microphone with channel up/down and CH16/Call keys
- Selectable 3-digit or 4-digit channel display
Specifications
- Output Power: 25 W
- Dimensions: 6.2 × 2.6 × 3.5 in (158 × 66 × 88 mm)
- Waterproof Rating: IPX7 (1 m depth for 30 minutes)
- Display Type: Dot-matrix LCD with backlight
- Interface: NMEA 0183 input/output
- Microphone: HM-235B/W included
Available Models
- M330G White (with GPS)
- M330G Black (with GPS)
