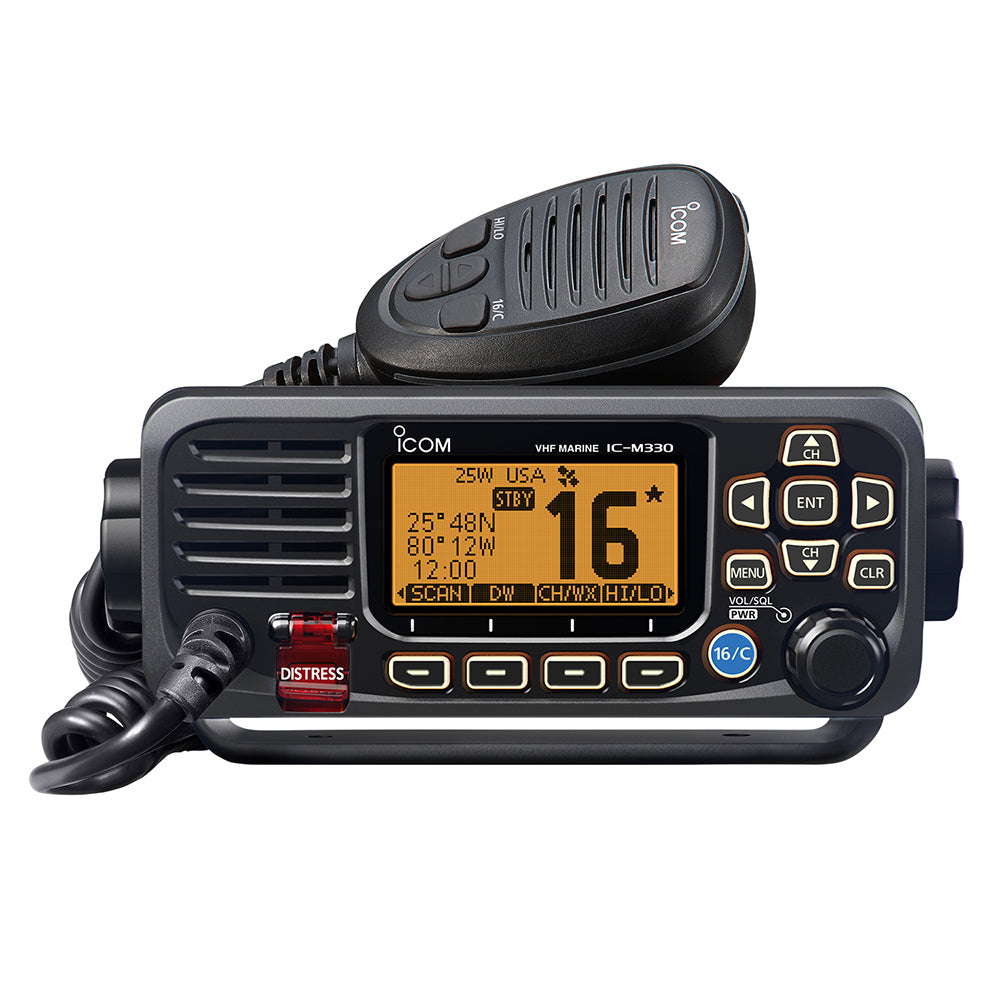

ICOM M330G VHF Radio (Black with GPS)
Overview
The ICOM M330G offers the same proven performance and features as the M324 series, but in a smaller, space-saving design ideal for compact installations. Combining durability, clarity, and reliability, the M330G provides 25 watts of transmit power, IPX7 waterproof protection, and Icom’s intuitive user interface for ease of operation — all at an exceptional value.
GPS Capability
The M330G includes an integrated GPS receiver and an easy-to-install external GPS puck antenna for precise location data. The compact GPS antenna provides accurate positioning, bearing, and speed using signals from GPS, GLONASS, and SBAS satellites. This information enhances DSC (Digital Selective Calling) functionality for improved safety and communication. Simply connect the included GPS puck antenna for optimal GPS and DSC performance.
Compact and Easy to Use
The M330G’s ultra-compact size allows for installation in vessels with limited dash space. Its clear dot-matrix display and intuitive soft-key interface make navigation and channel selection effortless. Frequently used functions are conveniently assigned to soft keys for one-touch operation.
Key Features
- IPX7 submersible rating (1 m depth of water for 30 minutes)
- AquaQuake™ speaker-draining function prevents audio degradation from water exposure
- Common NMEA interface for external GPS/NAV connection
- Compatible with MA-500TR Class B AIS transponder
- Tag scan and favorite channel functions for quick access
- Dual/Tri-Watch mode for monitoring CH16 and/or call channels
- Priority scan function for enhanced situational awareness
- Backlit display and keypad for night operation
- External speaker connection supported
- Weather channels with weather alert function
- Supplied with HM-235B/W hand microphone featuring channel up/down and CH16/Call keys
- Selectable 3-digit or 4-digit channel display
Specifications
- Output Power: 25 W
- Dimensions: 6.2 × 2.6 × 3.5 in (158 × 66 × 88 mm)
- Waterproof Rating: IPX7 (1 m depth for 30 minutes)
- Display Type: Dot-matrix LCD with backlight
- Interface: NMEA 0183 input/output
- Microphone: HM-235B/W included
Available Models
- M330G Black (with GPS)
- M330G White (with GPS)
