- Description
Class-D DSC VHF Marine Radio with Smart Device Remote Control

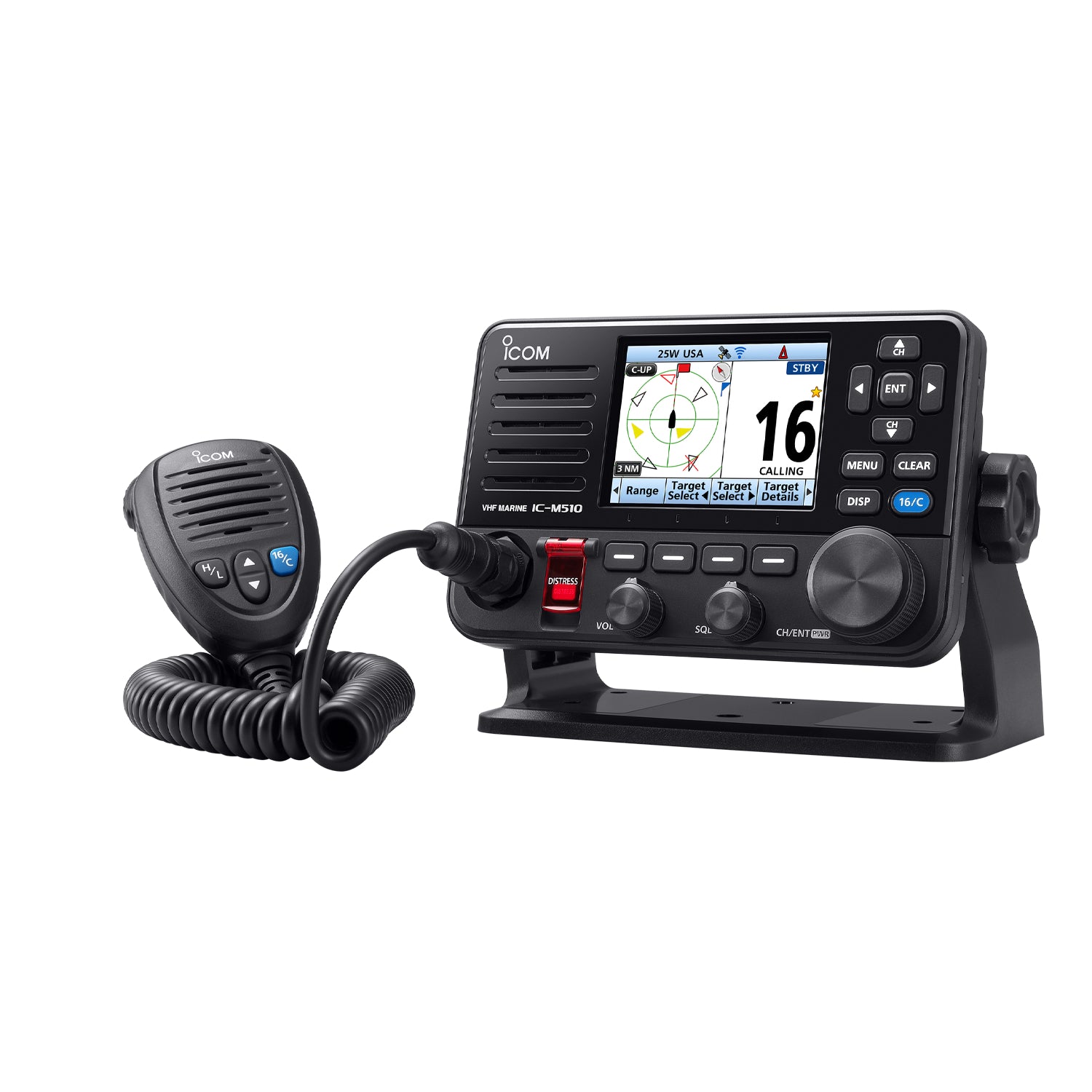

The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology.
Its built-in Class-D DSC provides essential maritime communication, supporting safety on the water.
Integration with built-in NMEA 2000™ connectivity and two-way hailer / RX hailer functions enhances your experience at sea even more.
Simple remote control through a smart device enables an unprecedented onboard communication experience.
In addition, the product features a color display, navigation functions, and a stylish design that won an iF Design Award.
It can be used for pleasure boats, fishing boats, sailing, as well as in rescue and public-safety operations.
NMEA 2000 and Loud 25 W Two-Way Hailer / 20 W RX Hailer Now Built-In
The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display).
The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio-channel data to other equipment.
* AIS receiver may not be included depending on the transceiver version.
When connected to the optional SP-37 speaker horn, you can talk with the crew on the deck or shore via the radio’s microphone and hear any reply via the horn speaker.
The RX hailer function enables you to keep watch of the radio traffic on the deck or tower through the hailer speaker.
You can also sound foghorn patterns from the hailer speaker.
Radio Control & Intercom through Your Smart Devices
Use the RS-M500 app (for iOS™ / Android™) to remotely control the IC-M510 EVO through WLAN.
Up to three smart devices can be used as a wireless microphone or simple remote control of certain functions.
The IC-M510 EVO can be controlled from anywhere on board, so you can make calls while working inside the vessel or checking the surroundings on deck.
An intercom function between your smart devices / CommandMic™ and the radio is also built in.
15 W Speaker Provides Clear and Loud Audio
The built-in waterproof speaker enhances the received audio and provides powerful, clear sound.
Wide Viewing Angle Color TFT LCD
The color TFT LCD provides nearly a 180-degree viewing angle.
The wide display has high-resolution characters and function icons.
Hold down the DISP key to switch to Night Mode, which ensures good readability in low-light conditions.
Built-In Class-D DSC – “Distress” Button Can Be a Lifesaver in Emergencies
With just a press of the DISTRESS button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and / or other vessels.
The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
Active Noise Cancelling Technology and Other Features
The Active Noise Cancelling system digitally removes background noise from both transmit and receive audio, providing clear communication in noisy maritime environments.
Simplified Navigation Function
The Navigation function guides you to a specified waypoint or AIS target.
You can assign up to 100 destinations as waypoints, such as your favorite fishing spots or starting positions for yacht races.
Other Features
- Integrated GNSS receiver (selectable from either internal GPS antenna or optional UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Voice Scrambler with optional UT-112A
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Supplied HM-205RB speaker-microphone can be connected to either front or rear panel to meet user requirements
- External speaker connection
- Optional HM-195 CommandMic™ available
- Supports 4-digit channels
- Supplied waterproof flush-mount gasket for panel mount
