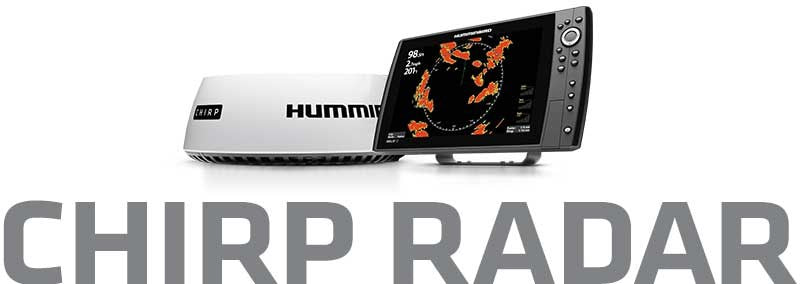

Humminbird HB 2124 CHIRP Radar
Introducing the next generation of marine radar: the new CHIRP Radar featuring CHIRP Pulse Compression. Setting a new standard for compact solid-state radar, this technology delivers superior imaging on both long and extremely short ranges. The result is better situational awareness in low-visibility conditions and the ability to identify birds and floating obstacles that can reveal where gamefish are located. You can also track weather and vessels with remarkable definition. Available for select Humminbird models with networking capabilities.
Features
-
Compatible with: All APEX Series, all SOLIX Series, HELIX 15, HELIX 12, HELIX 10, HELIX 9, HELIX 8, and select networking HELIX 7 models (HELIX 7 G4N, G3N, G2N), as well as all ONIX and ION Series.
-
Data Cable Length: 32.8 ft
-
Antenna: 21" enclosed dome, patch array type
-
Peak Power Output: 20 Watts
-
Transmit Frequency: 9354 to 9446 MHz
-
Beam Width: 4.9° horizontal, 20° vertical
-
Input Voltage: 12 or 24 VDC (10.8–31.2 Volts)
-
Networking: Ethernet
-
Range Scale: 1/16 to 24 nautical miles
-
Power Consumption: 17W transmit, 7W standby, 2W sleep mode
-
Duplexer: Circulator
-
Pulse Widths @ 3 dB: 40 ns to 14.7 µs
-
CHIRP Lengths: 400 ns to 20 µs
-
CHIRP Bandwidth: Up to 32 MHz
