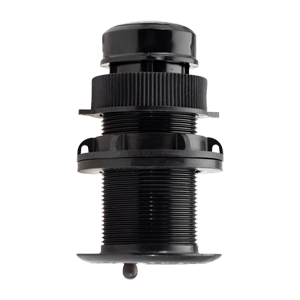

Plastic Thru-hull NMEA 2000 Smart Transducer
This plastic thru-hull NMEA 2000 smart transducer combines precise depth, speed, and temperature readings with attitude sensing for heel/trim and pitch/roll data. It can read depths up to 330 ft and provides fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.
Wireless BLUETOOTH connectivity allows easy calibration of sensor data through the AIRMAR Cast app. The 235 kHz sensor frequency helps reduce interference with other echosounder devices onboard. Its wide, fan-shaped 10 x 44-degree beamwidth ensures reliable bottom tracking, even on steep deadrise hulls or when a sailboat is heeling.
Features
-
Depth, speed, and temperature sensing
-
Power: 100 W
-
Frequency: 235 kHz
-
Supported deadrise/transom angles: 0–22 degrees
-
Maximum depth: 330 ft
-
Connection: NMEA 2000
-
Beamwidth: 10 x 44 degrees
