- Description

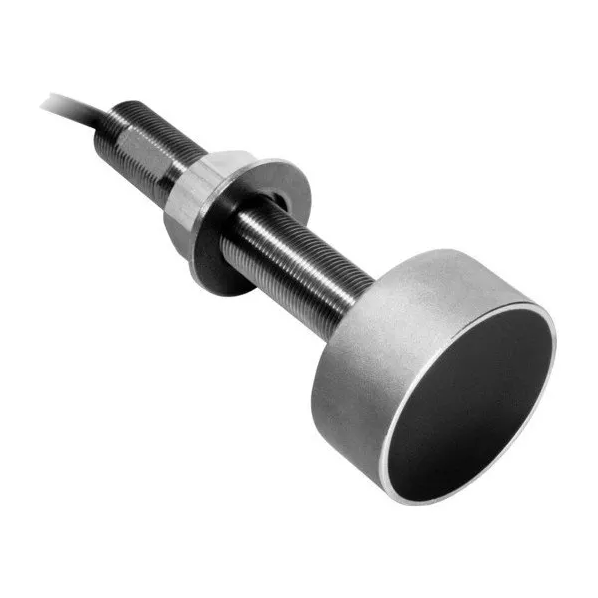

This impact-resistant, stainless steel thru-hull stem can be used on all hulls, including plaining hull powerboats and displacement hull boats. The dual frequency version provides good target detail in shallow water at 200 kHz and good deep water bottom tracking at 50 kHz. The narrow beam 200 kHz version provides excellent bottom detail. AIRMAR's high performance fairings are recommended for all installations to obtain the best possible performance.
General Specifications
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 45°/12° |
| Transducer maximum depth | 800-1,200 ft. |
| Transducer cable length | 33 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0° degree deadrise |
Transducer Support
| Transducer frequency | 50/200 kHz |
|---|
