- Description

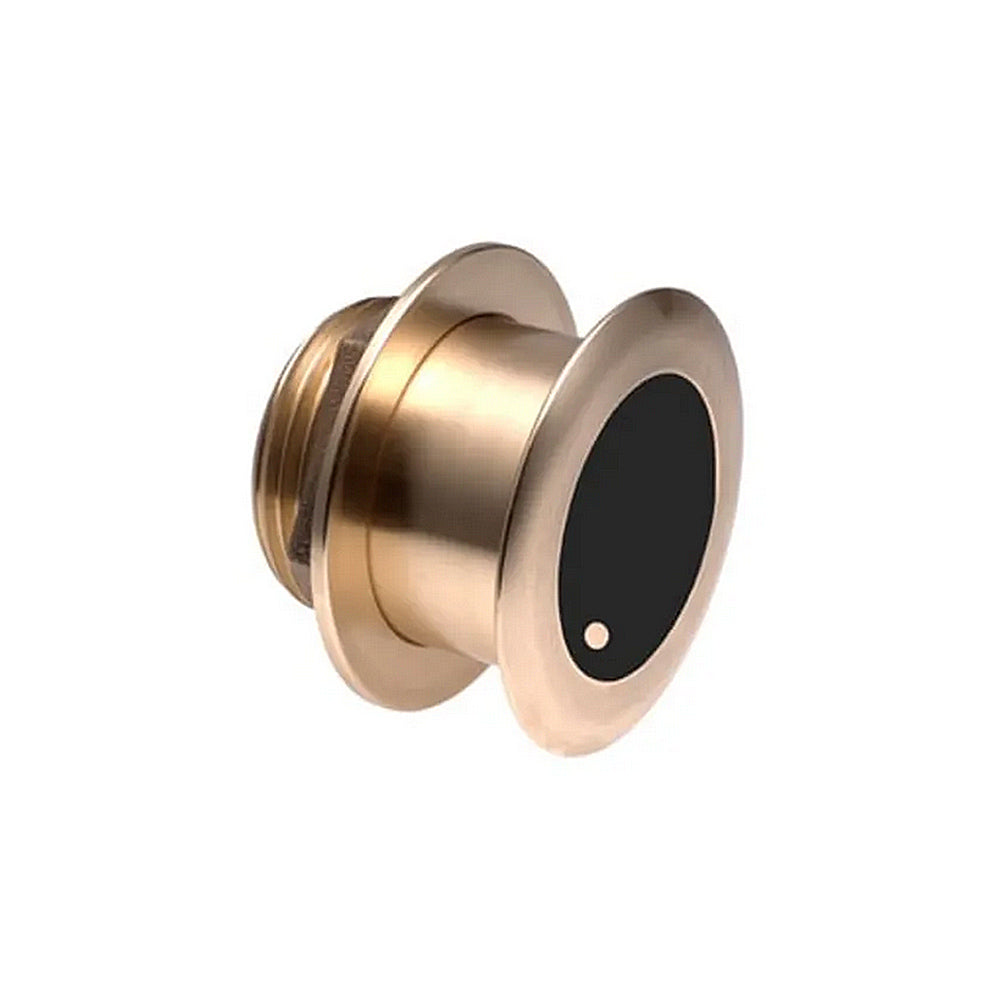

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.
CHIRP Frequencies:
- B175H Series - High Chirp: An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,000 ft and an operating frequency of 130-210 kHz.
- B175L Series - Low Chirp: An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 2,500 ft and an operating frequency of 40-60 kHz.
- B175M Series - Mid Chirp: An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,500 ft and an operating frequency of 85-135 kHz.
- B175HW Series - HW Chirp: An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 500 feet and an operating frequency of 150-250 kHz.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
GENERAL SPECIFICATIONS |
|
| Transducer Frequency |
B175H Series: 130-210 kHz B175L Series: 40-60 kHz B175M Series: 85-135 kHz B175HW Series: 150-250 kHz |
|---|---|
| Transducer Power | 1 kW |
| Transducer Beamwidth |
B175H Series: 6°-10° B175L Series: 16°-25° B175M Series: 11°-16° B175HW Series: 25° |
| Transducer Maximum Depth |
B175H Series: 1,000 ft. B175L Series: 2,000 ft. B175M Series: 1,500 ft. B175HW Series: 500 ft. |
| Transducer Cable Length |
B175H/B175M/B175L Series: 39 ft. B175HW Series: 30 ft. |
| Transducer Depth/Speed/Temperature | Depth and Temperature |
| Transducer Number of Pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-7° degree deadrise, 0° tilt 8°-15° degree deadrise, 12° tilt 16°-24° degree deadrise, 20° tilt |
TRANSDUCER SUPPORT |
|
| Transducer frequency |
B175H Series: 130-210 kHz B175L Series: 40-60 kHz B175M Series: 85-135 kHz B175HW Series: 150-250 kHz |
|---|---|
