- Description

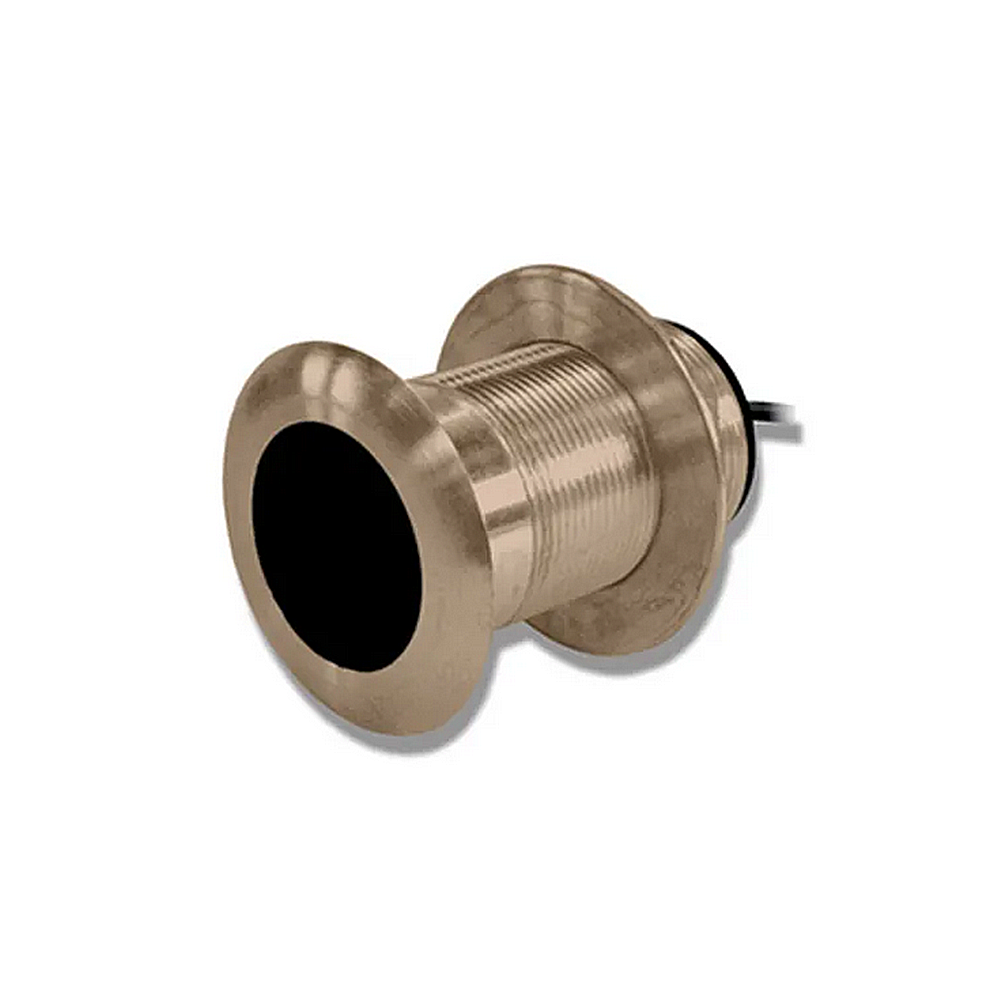

This bronze thru-hull mount transducer performs well at high speeds.
An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Do not use on metal hulls.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
General |
|
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 45°/12° |
| Transducer maximum depth | 800-1,200 ft. |
| Transducer cable length | 33 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-7° degree deadrise |
Transducer Support |
|
| Transducer frequency | 50/200 kHz |
|---|---|
