- Description

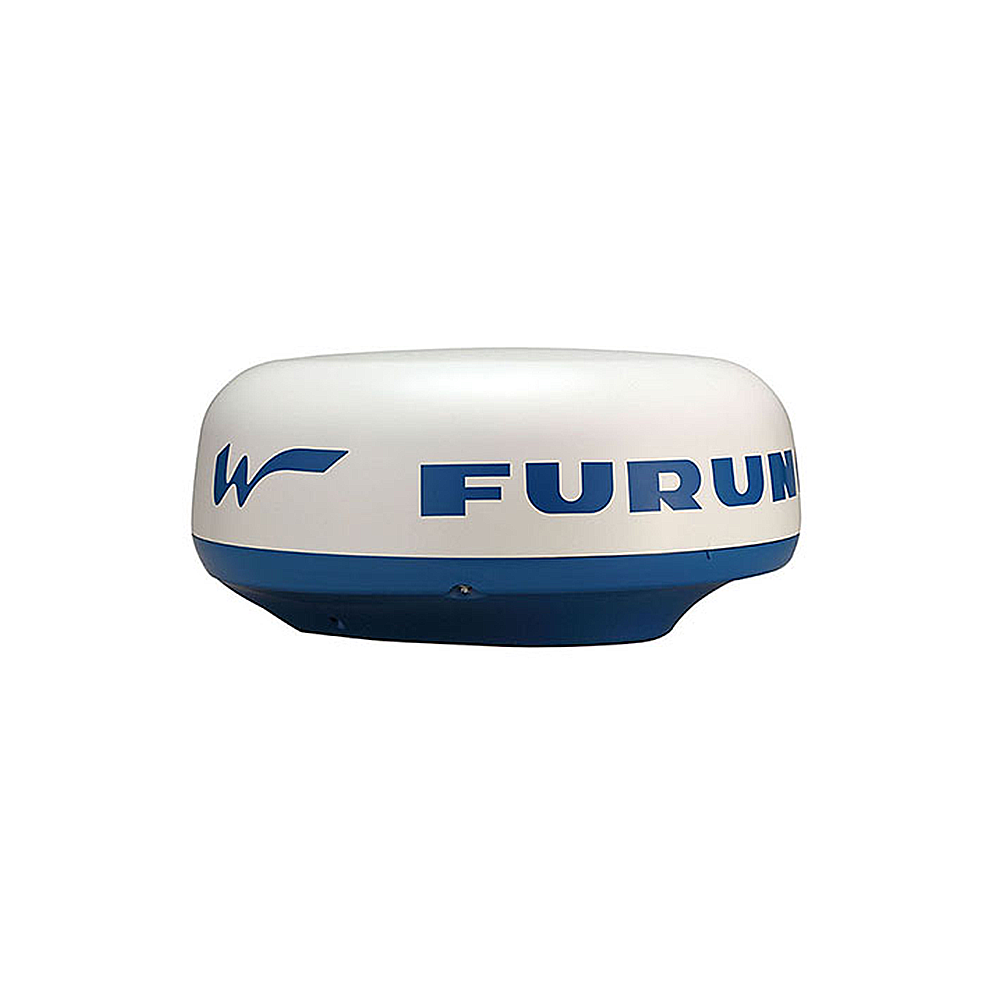

Wireless, 4 kW, 24 nm range, X-Band, 19" Radome, Magnetron
The FURUNO DRS4W is the first radar antenna in the world that allows you to wirelessly access radar images on your iOS devices, combining ease of use with great flexibility. After installing and setting up the application available from the Apple store for free, you can watch radar images directly on your iPad or iPhone. You are free to move around on your boat whilst still having complete information about your surroundings.
Get it at the 1st glance.
Plug in the Radar, set up the app from App Store and you're good to go. With familiar gestures it's a breeze to use, you can even use two iOS devices simultaneously.
Less cables, more flexibility.
Installation is simple with its compact and lightweight Radar antenna. Mount it, plug in the power cord and you're done.
- A 4kW radar antenna, powerful yet compact in size.
- The world's first radar that allows you to wirelessly access radar images on your iOS devices.
- With image quality that matches that of a conventional 10" wired Radar, the DRS4W will impress you
- Download the Marine Radar app from Apple App Store that is available for free.
- Guard zone alarm available with updated Marine Radar App ver. 2.0.0
SPECIFICATIONS
Antenna
- Peak Power Output: 4 kW
- Type: ø488 mm Radome (19 inch)
- Frequency: 9410MHz±30MHz, P0N
- Beam Width (Horizontal): 7.2°(3 dB)
- Beam Width (Vertical): 25°(3 dB)
- Range Scales: 0.125 to 24 nm
- Antenna Rotation Speed: 24 rpm
- Weight: 5.7kg
Display
- Display Unit: iPad/iPad mini/iPhone (Customer supply)
- Display Modes: Auto Gain, Auto STC, Rain, Auto Noise rejector, Sector blank, Off center, Cursor (measure target), Guard Zone alarm
Environment
- Temperature: -25°C to + 55°C
- Waterproofing: IPX6
Power Supply
- Power Supply / Consumption Current: 12-24 VDC: 2.1/1.0 A
Price Per: 1 EA
Cable Not Included, If a 15 m cable assembly is needed,
Please Order: 001-266-010-00
