- Description

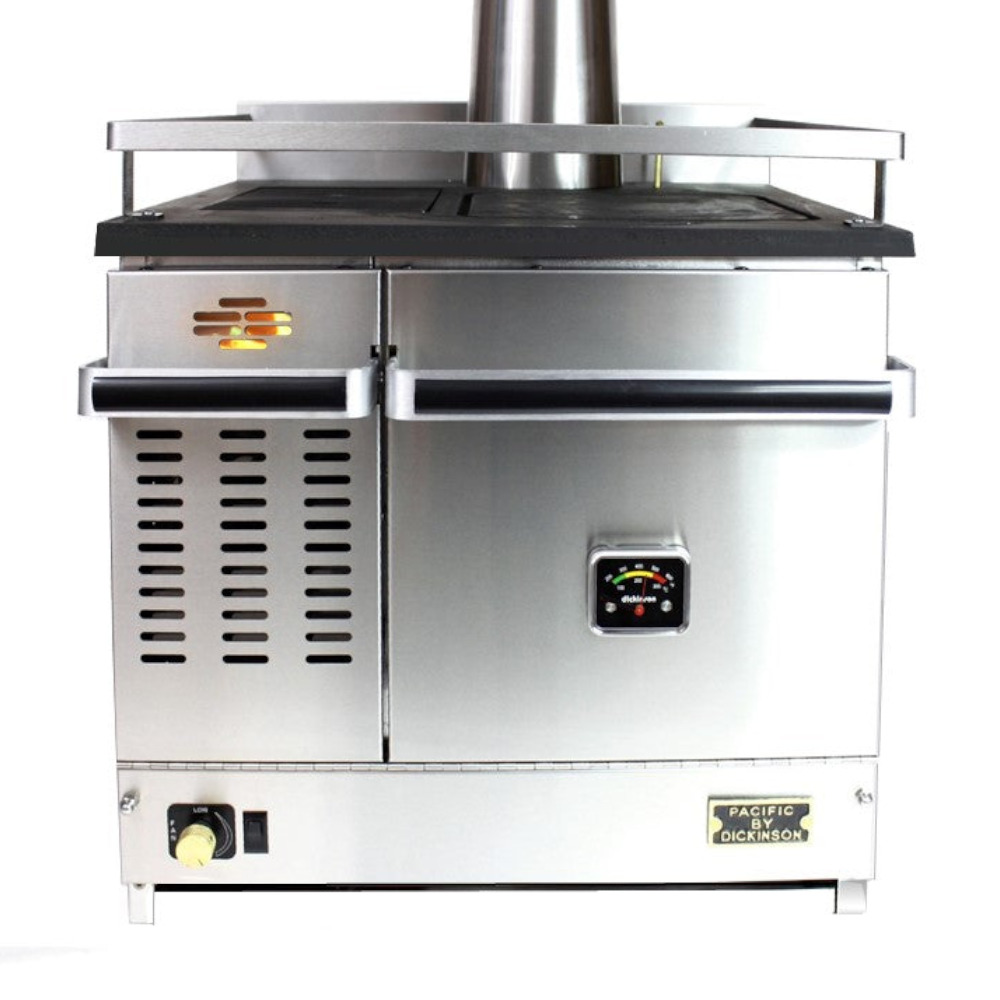

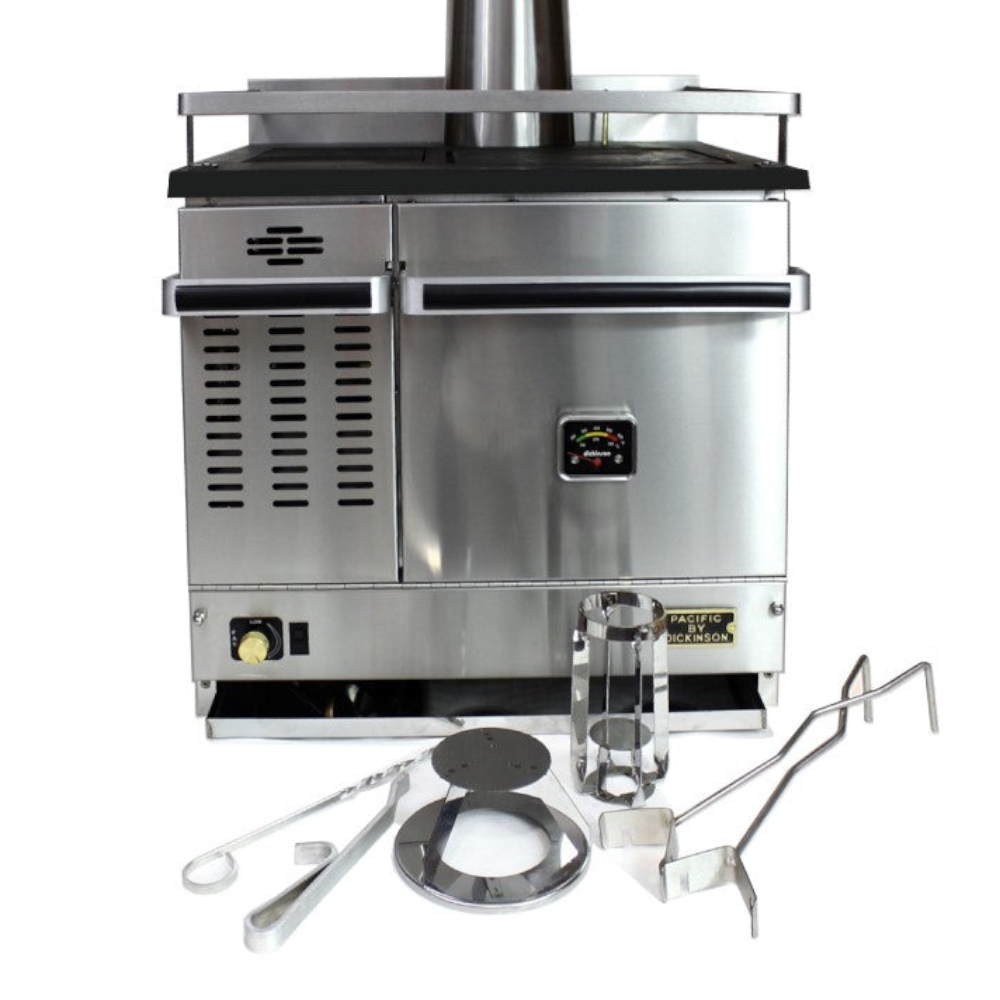

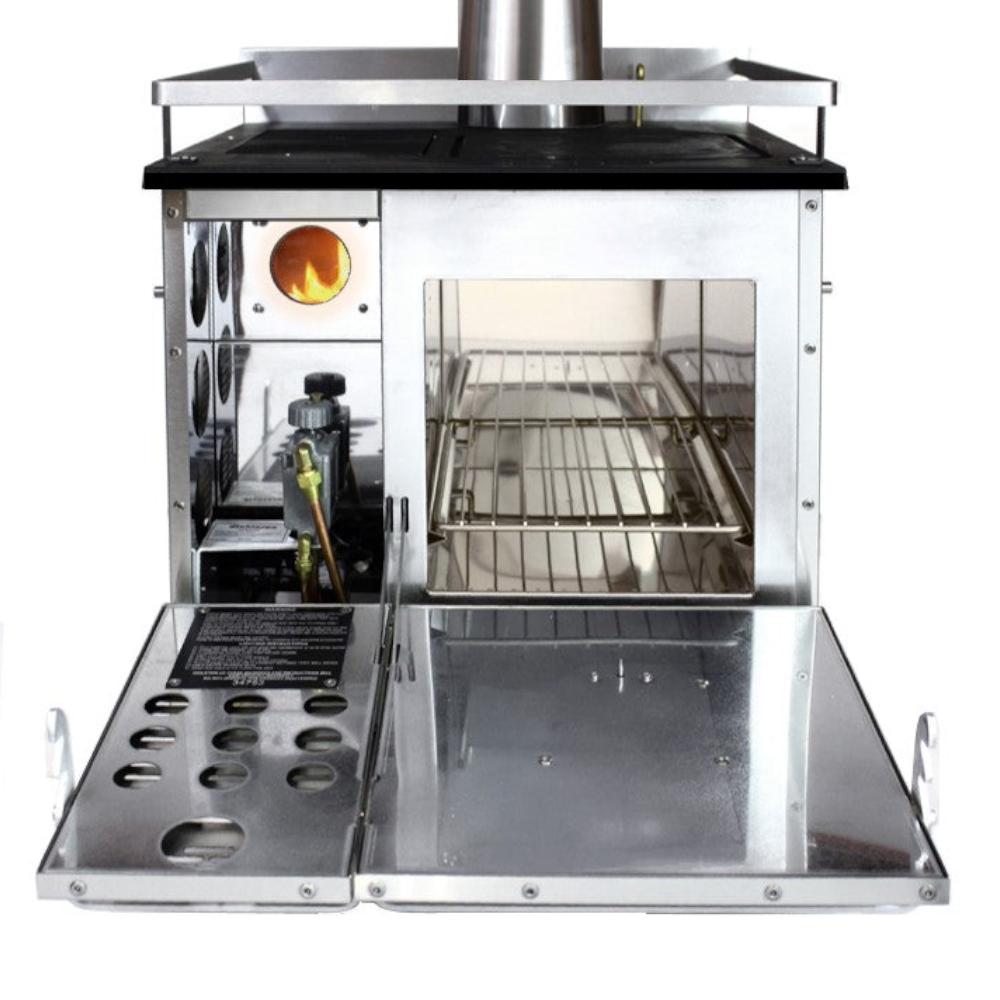

The Pacific Cookstove is Dickinsons' most popular model with a standard size to fit most stove cut outs. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.
- Popular Size: Fits most standard stove cutouts.
- Efficient Heating: Burns diesel economically, providing cozy, dry heat. Also features a cast iron cooktop for cooking.
-
Installation Requirements:
- Requires 5” diameter chimney parts.
- Needs a minimum 4ft, maximum 8ft of chimney (straight run with no elbows is best).
- For chimneys 6ft or longer, we highly recommend a barometric damper.
- Requires a permanent fresh air vent in the unit's area.
-
Design Features:
- Attractive laser-cut design in 304 stainless steel.
- Produces dry heat to remove moisture from the vessel.
-
Sailboat Installation:
- Must face fore or aft. If port or starboard facing is desired, valve adjustment may be needed.
-
Draft Assist Fan:
- Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
-
Fuel Options:
- Factory set for #2 diesel, but valves for kerosene & #1 diesel are available.
-
Hot Water Coil Option:
- Can add a 1-turn coil to heat 5-10 gallons of water or a 2-turn coil for 15-20 gallons.
-
Specifications:
-
Oven Size
- Width: 10.25”
- Depth: 13”
- Height: 10.5”
-
Fuel Consumption (24hr):
- Low: 1.30 gal
- High: 3.20 gal
-
Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Follow this install guide by Dickinson for optimal performance!
(Special Order Item)
Price Per: 1 EA
