- Description

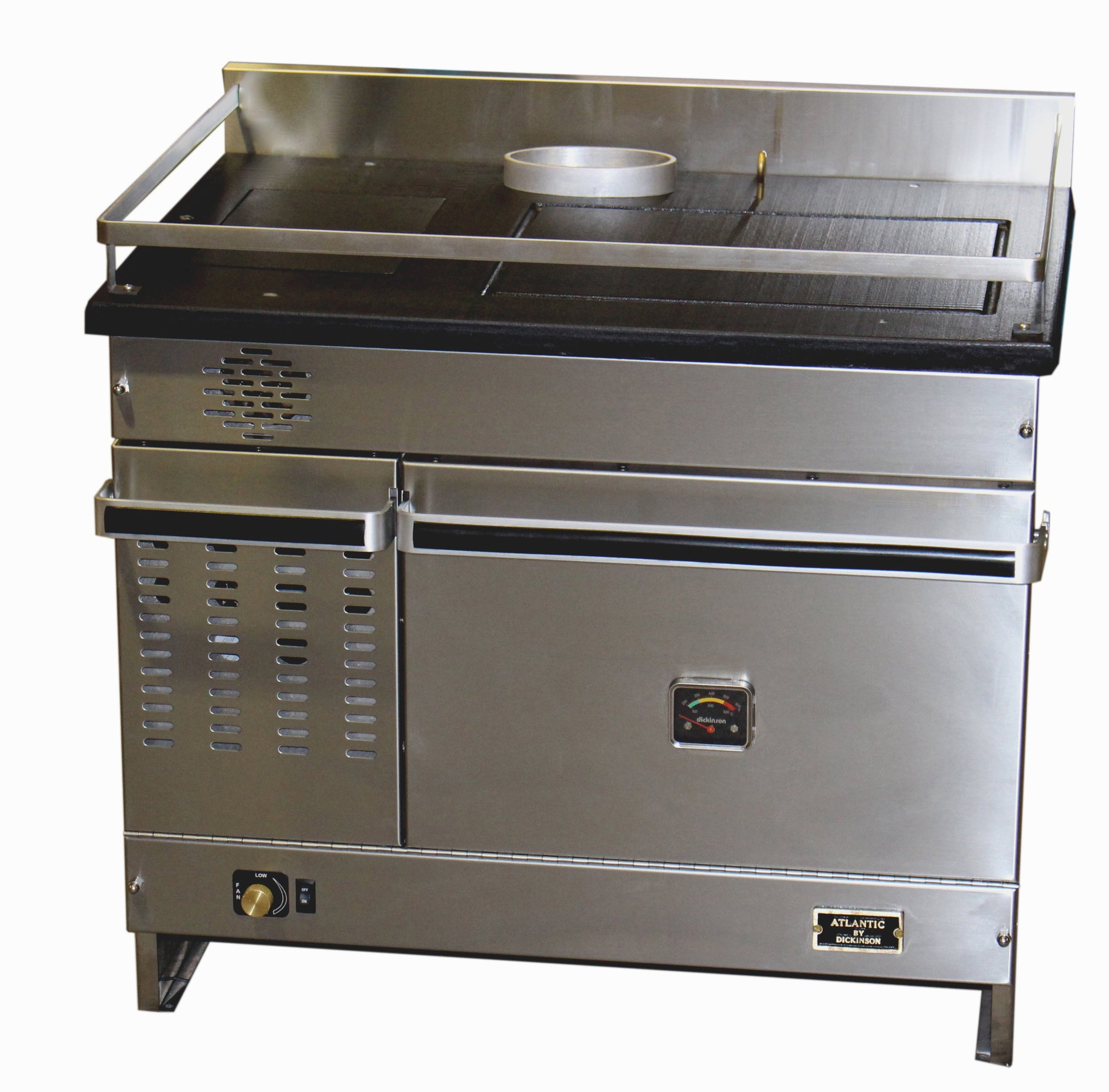

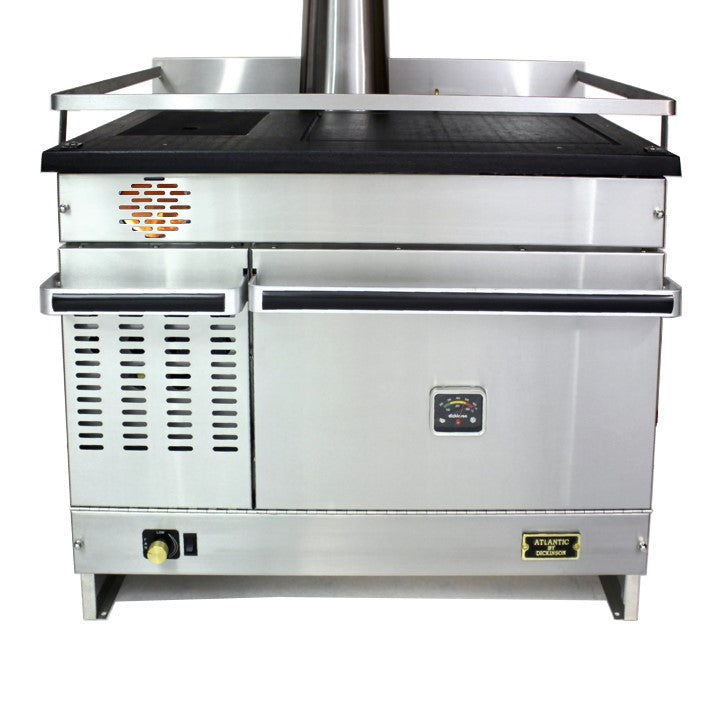

The Atlantic Cookstove is Dickinsons' largest stove and is equipped with a larger diesel burner than our other stoves. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.
- Powerful and Spacious: The Atlantic Cookstove boasts our largest diesel burner for maximum heating capacity. This attractive, cost-effective stove provides comfortable, dry heat and includes a cast iron cooktop for versatile cooking.
- Easy Installation:
- Requires 5” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Requires a permanent fresh air vent in the unit's area.
- Design Features:
- Features a stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Sailboat Installation:
- Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
- Draft Assist Fan:
-
Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Options:

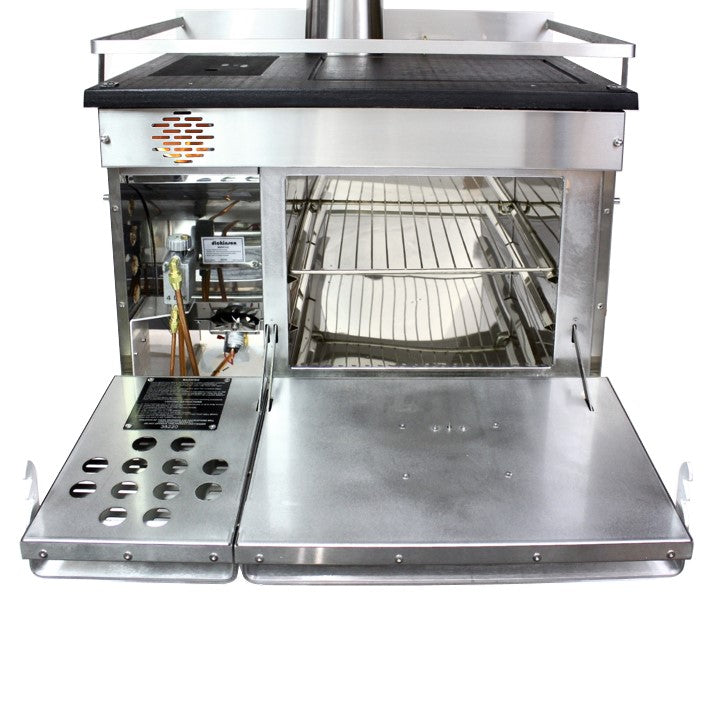

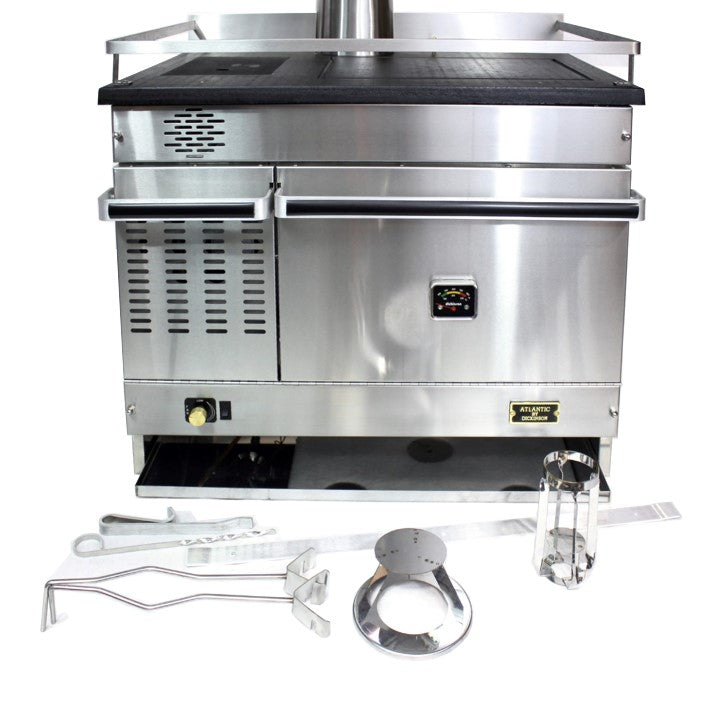

- Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
- Specifications:
- Oven Size:
- Width: 16”
- Depth: 14.5”
- Height: 12”
- Fuel Consumption (24hr):
- Low: 1.89 gal
- High: 4.50 gal
- Heat Output:
- Low: 8125 BTU
- High: 24375 BTU
Follow this installation guide by Dickinson for optimal performance!
(Special Order Item)
Price Per: 1 EA
