- Description

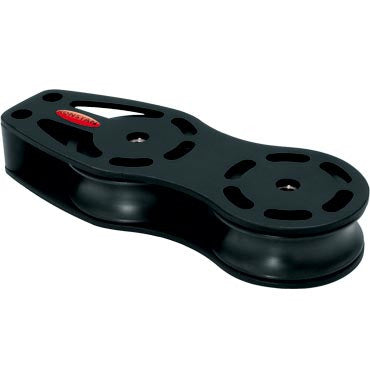

DECK ORGANISER,DOUBLE,
SERIES 60, 14mm SHEAVE
DECK ORGANISERS
FEATURES
- Lightweight design with cheek cut outs for easy bearing maintenance
- Through hub mounting for maximum strength
- All-purpose bearing system provides maximum static load capacity
| Sheave Dia | 60 mm |
|---|---|
| Max. Rope Dia | 14 mm |
| Max. Cable Dia | - mm |
| Fastener Dia | 8.0 mm |
| M.W.L. | 1000 kg |
| B. L. | 2000 kg |
| Weight | 271 g |
PRODUCT INFORMATION
Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks, flared at rope entry and exit points to minimise chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.Mounts with 4 x 8mm (5/16") fasteners, not suppliedAPPLICATIONS
- Line deflection on larger yachts (depending on load and angle of deflection)
- Halyard and control line deflection on boats to 14m (46ft)
MATERIALS
- Alloy upper and lower cheek plates
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel hubs
