RF41821

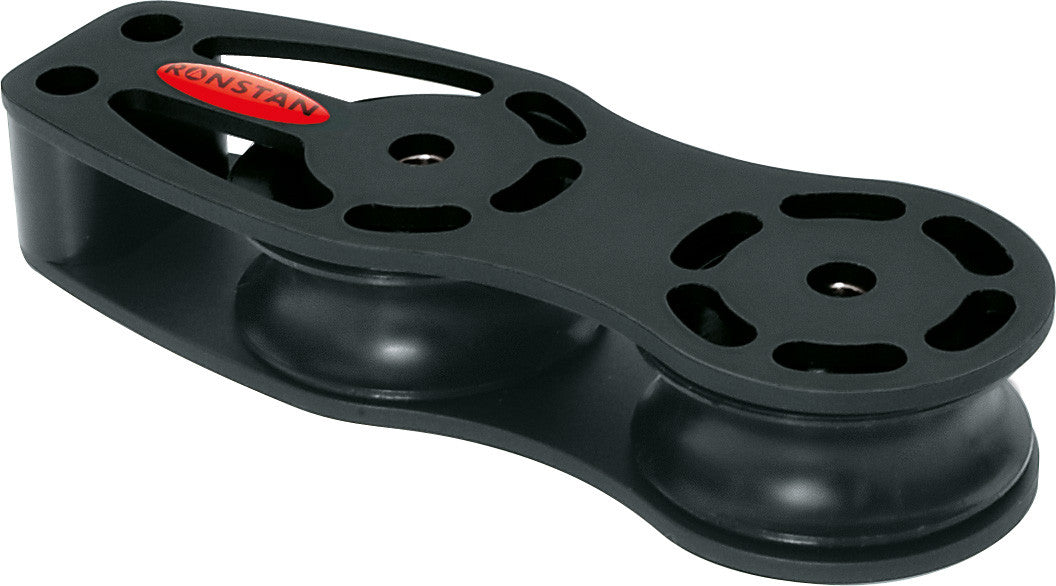

Series 40 All Purpose Double Deck Organiser
2x 40mm Sheaves, Requires 4x 6mm (1/4") Fasteners
FEATURES
Lightweight design with cheek cut outs for easy bearing maintenance.
Through hub mounting for maximum strength.
All-purpose bearing system provides maximum static load capacity
Mount with 4 x 6mm (1/4”) fasteners, not supplied.
Length 116mm (4 9/16").
Hole centres at 48.5mm (1 29/32")
SPECIFICATIONS
| B.L. (kg) | 1000 |
|---|---|
| M.W.L. (kg) | 500 |
| Max. Rope diameter (mm) | 12 |
| Weight (g) | 101 |
| Fastener Ø (mm) | 6 |
| Qty. Fasteners | 4 |
Product Information
Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.
TECHNICAL INFORMATION
APPLICATIONS
Line deflection on larger yachts (depending on load and angle of deflection)
Series 40 - halyard and control line deflection on boats to 11m (36ft)
MATERIALS
Cheek plates: Anodised aluminium. U.V. stabilised Acetal sheaves. Grade 316 stainless steel hubs
