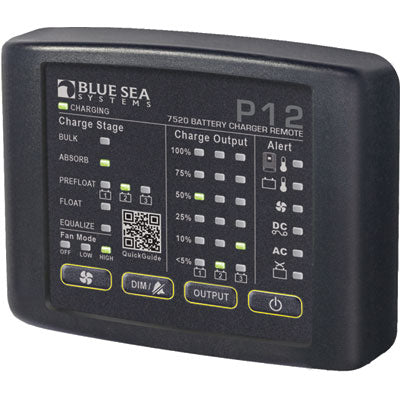

- Description
LED Indicators
-
Charging LED – Quick check for green light confirms charging
-
Charge Stage – Displays charging stage
-
Equalize LED – Indicates the charger is currently in equalization mode
-
Fan Mode – Indicates charger's internal fan mode
-
Charge Output – Displays the percentage of output current for each battery. Will also indicate maximum output setting when maximum output is adjusted to accommodate AC source limitations.
-
Alert – Icon LEDs provide warning and alert status for quick diagnostics
Four Control Buttons
-
Fan – User adjustable settings
-
Dim/Alarm – Provides adjustment to brightness of LEDs on display as well as Silence function for alarms
-
Output – User adjustable charger output when AC source limitations require lowering the AC current draw
-
Power – Places P12 Battery Charger into standby mode
