RF40140

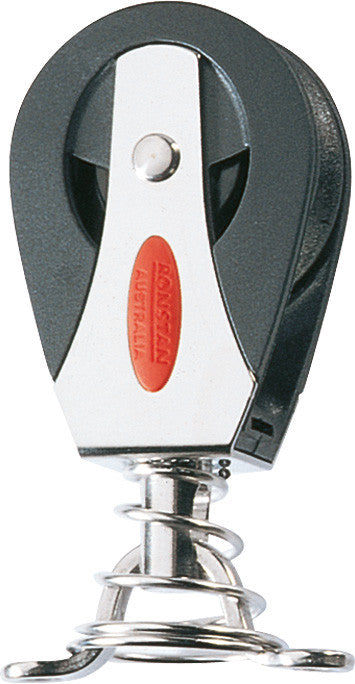

Series 40 Ball Bearing Stand-Up Block
Single sheave stand-up block, includes saddle and spring.
FEATURES
Low friction Acetal bearing system.
Lightweight.
Cheek cut-outs for easy bearing maintenance.
Captive Lock™ universal head.
Low friction, 2-stage ball bearing system.
High static and dynamic load capacity.
Lightweight.
Cheek cut-outs for easy bearing maintenance.
SPECIFICATIONS
| B.L. (kg) | 800 |
|---|---|
| M.W.L. (kg) | 350 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 71 |
| Fastener Ø (mm) | 5 |
| Qty. Fasteners | 2 |
Product Information
Sheaves running on Acetal ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
TECHNICAL INFORMATION
APPLICATIONS
Mainsheet. Halyard. Vang. Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)MATERIALS
Acetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks
