- Description

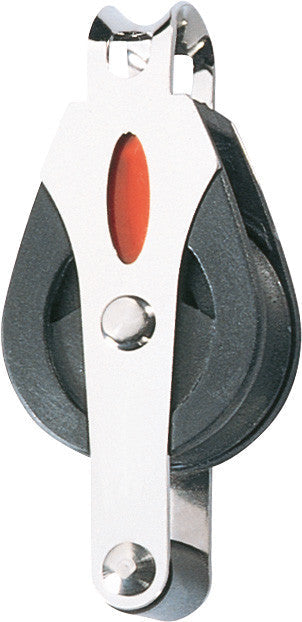

BLOCK,SINGLE & BECKET,BALL BEARING MINI
SERIES 30
BALL BEARING BLOCKS
Series 30mm
FEATURES
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
- High static and dynamic load capacity.
- Light weight
- Versatile head fittings
| Sheave Ø | 30 mm |
|---|---|
| Max. Rope Ø | 8 mm |
| Max. Cable Ø | - mm |
| Pin Ø | - mm |
| M.W.L. | 300 kg |
| B. L. | 750 kg |
| Weight | 34 g |
PRODUCT INFORMATION
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.APPLICATIONS
- Primary lead blocks on dinghies and catamarans
- Control lines on larger yachts
MATERIALS
- U.V. stabilised Acetal sheaves
- Acetal ball bearings
- Impact modified, fibre reinforced and U.V. stabilised Nylon cheeks
- Grade 316 stainless steel load straps and head fittings
- Acetal ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
