RF40110

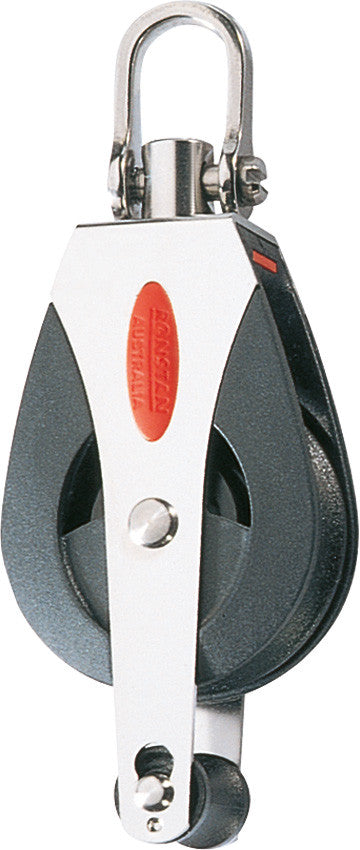

Series 40 Ball Bearing Block, Becket
Single sheave block with becket and universal head
FEATURES
Low friction Acetal bearing system.
Lightweight.
Cheek cut-outs for easy bearing maintenance.
Captive Lock™ universal head.
Slotted pin shackle eliminates fouled lines.
Snap fit removable becket pin.
SPECIFICATIONS
| B.L. (kg) | 1000 |
|---|---|
| M.W.L. (kg) | 350 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 79 |
| Pin Ø (mm) | 5 |
Product Information
Sheaves running on Acetal ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
TECHNICAL INFORMATION
MATERIALS
Acetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks
