RF41100

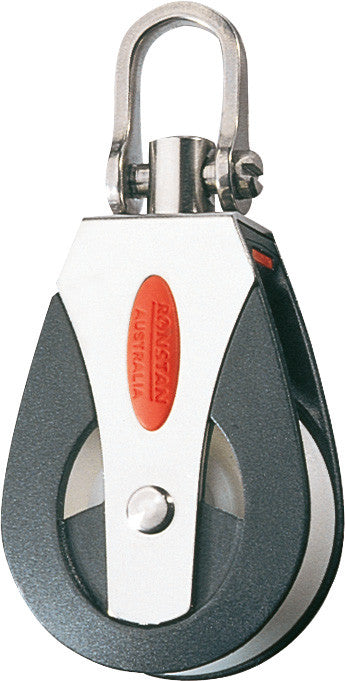

Series 40 All Purpose Block, Single
Single sheave all purpose block with universal head
FEATURES
Exceptionally high working loads.
Low maintenance, long service life.
Self-lubricating sheave
Captive Lock™ universal head.
Slotted pin shackle eliminates fouled lines
SPECIFICATIONS
| B.L. (kg) | 1000 |
|---|---|
| M.W.L. (kg) | 400 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 71 |
| Pin Ø (mm) | 5 |
Product Information
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
TECHNICAL INFORMATION
MATERIALS
- U.V. stabilised Acetal sheaves.
- Impact and U.V. resistant, fibre reinforced Nylon cheeks.
- Grade 316 stainless steel bearing race.
- Grade 316 stainless steel load strap.
- Impact and UV resistant, fibre reinforced Nylon cheeks.
