Ronstan

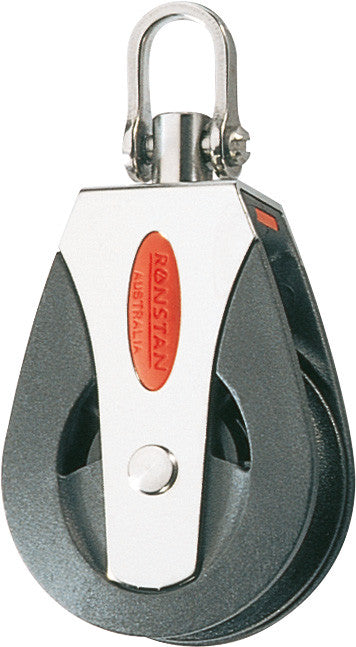

Block,Single,Univrs.12mm. New Series 50, Bb

Block,Single,Univrs.12mm. New Series 50, Bb

Category: Ronstan
MPN # RF50100 SKU # RF50100

UPC : 9316800241095

$60.50 CAD
$60.50 CAD
Shipping calculated at checkout.

⚠️ Important Pickup Information

While our retail store carries a wide selection of products shown on this website, it is not possible to stock all 80,000+ products in-store.

Please place your order online or call us before driving to the store to confirm inventory availability.

If the item is not available in-store, we can usually transfer it from our warehouse within 3–5 business days, and we'll notify you as soon as it is ready for pickup or delivery .

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120across Canada exceptions apply
View full details
  • Description

BLOCK,SINGLE,UNIVERSAL 12mm

SERIES 50, BALL BEARING

 BALL BEARING BLOCKS

 Series 50mm

FEATURES

  • Low friction, 2-stage ball bearing system
  • High static and dynamic load capacity
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines


Sheave Ø 50 mm
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L. 500 kg
B. L. 1500 kg
Weight 117 g


PRODUCT INFORMATION

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

APPLICATIONS

  • Mainsheet
  • Spinnaker sheets
  • Halyards and other primary applications on boats up to 10m (33ft)

MATERIALS

  • Acetal ball bearings
  • UV stabilised Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fibre reinforced Nylon cheeks
