- Description
RF41110

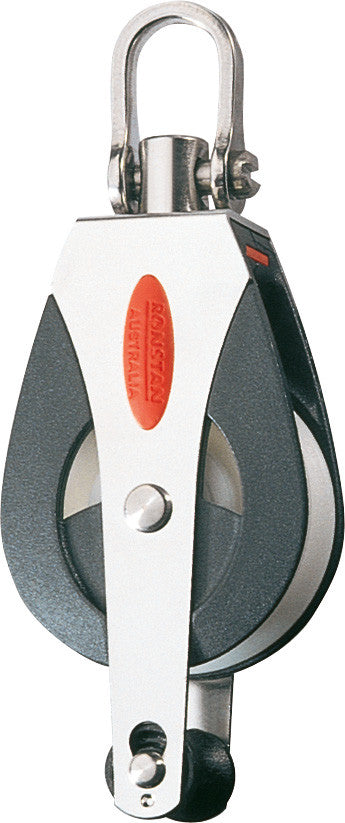

Series 40 All Purpose Block, Becket
Single sheave all purpose block with becket and universal head
FEATURES
Exceptionally high working loads.
Low maintenance, long service life.
Self-lubricating sheave
Captive Lock™ universal head.
Slotted pin shackle eliminates fouled lines.
Snap fit removable becket pin.
Spare parts - RF150 Shackle, RF41010 Replacement Becket Pin
SPECIFICATIONS
| B.L. (kg) | 1000 |
|---|---|
| M.W.L. (kg) | 400 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 80 |
| Pin Ø (mm) | 5 |
Product Information
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
TECHNICAL INFORMATION
MATERIALS
- U.V. stabilised Acetal sheaves.
- Impact and U.V. resistant, fibre reinforced Nylon cheeks.
- Grade 316 stainless steel bearing race.
- Grade 316 stainless steel load strap.
- Impact and UV resistant, fibre reinforced Nylon cheeks.
