- Description

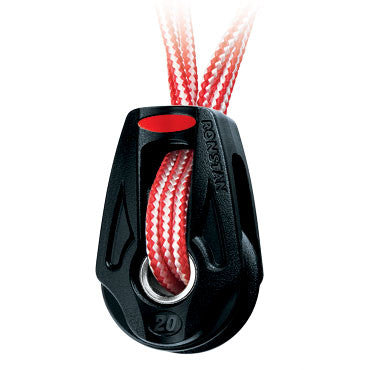

BLOCK,SINGLE-B.B. 1/4"
NEW SERIES 20
Series 20 Ball Bearing
ORBIT BLOCK™
FEATURES
- Integrated stainless steel hub to accept lashing attachment and through-sheave becket
- Suits up to 4mm (5/32”) lashing
- Includes 750 mm (30") x 1.7mm (1/16") diam lashing
| Sheave Ø | 20 mm |
|---|---|
| Max. Rope Ø | 6 mm |
| Max. Cable Ø | mm |
| Pin Ø | - mm |
| M.W.L. | 250 kg |
| B. L. | 550 kg |
| Weight | 9 g |
PRODUCT INFORMATION
The incredible Series 20 Orbit Block™ is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It’s so light that it needs to be lashed down!
Series 20 BB Orbit Block™ Lashing Head User Instructions
APPLICATIONS
- Control lines on dinghies and catamarans to 5m (16ft)
MATERIALS
- Sheave: High compression strength carbon Acetal
- Ball bearings: stainless steel
- Frame/Cheeks: Nylon
