- Description

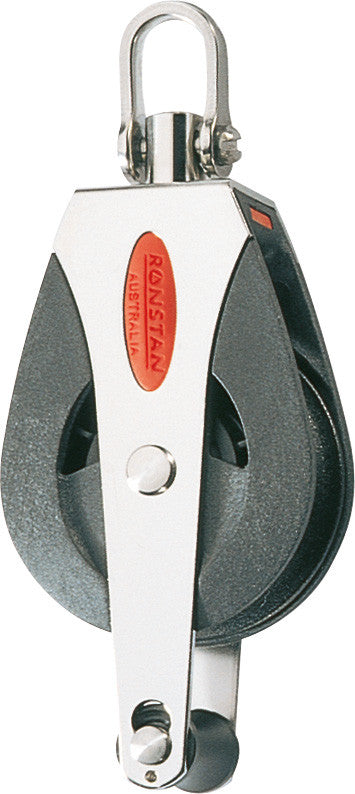

BLOCK,SINGLE & BECKET,UNIVERSAL 12mm
SERIES 50, BB
BALL BEARING BLOCKS
Series 50mm
FEATURES
- Low friction, 2-stage ball bearing system
- High static and dynamic load capacity
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
- Snap fit removable becket pin
| Sheave Ø | 50 mm |
|---|---|
| Max. Rope Ø | 12 mm |
| Max. Cable Ø | - mm |
| Pin Ø | 5.0 mm |
| M.W.L. | 500 kg |
| B. L. | 1500 kg |
| Weight | 133 g |
PRODUCT INFORMATION
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or toolsAPPLICATIONS
- Mainsheet
- Spinnaker sheets
- Halyards and other primary applications on boats up to 10m (33ft)
MATERIALS
- Acetal ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
