- Description
BLOCK,HIGH LOAD, 5/16"
"SERIES 30" SINGLE
HIGH LOAD BLOCKS
Series 30mm
FEATURES
- Exceptionally high working loads
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Suitable for both rope or wire

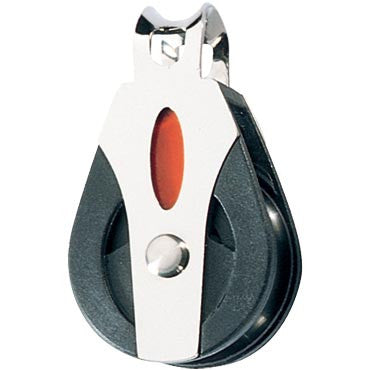

Indicative product image. Actual product may differ slightly from that shown. | Sheave Ø | 30 mm |
|---|---|
| Max. Rope Ø | 8 mm |
| Max. Cable Ø | 3 mm |
| Pin Ø | - mm |
| M.W.L. | 375 kg |
| B. L. | 750 kg |
| Weight | 28 g |
PRODUCT INFORMATION
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.APPLICATIONS
- Primary lead blocks on dinghies and catamarans
- Control lines on larger yachts
- Halyards
- Backstays
MATERIALS
- Nylatron® sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
