- Description

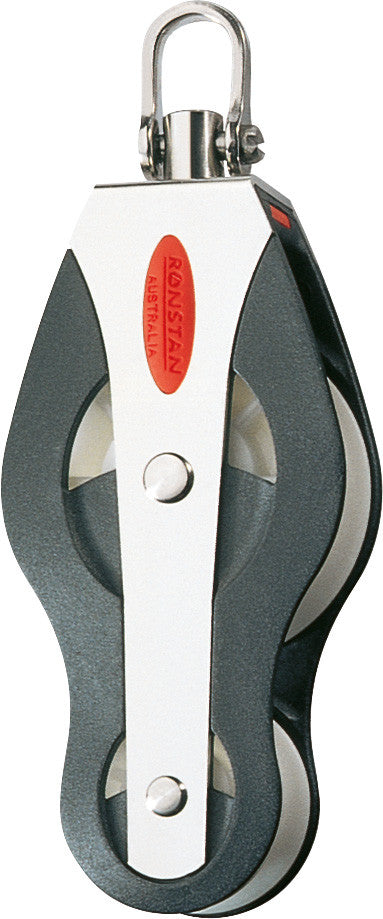

BLOCK,FIDDLE,UNIVERSAL 10mm
SERIES 50, ALL PURPOSE
ALL PURPOSE BLOCKS
Series 50mm
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
| Sheave Ø | 54 + 34 mm |
|---|---|
| Max. Rope Ø | 10 mm |
| Max. Cable Ø | - mm |
| Pin Ø | 5.0 mm |
| M.W.L. | 750 kg |
| B. L. | 1500 kg |
| Weight | 167 g |
PRODUCT INFORMATION
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as requiredAPPLICATIONS
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
- Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
