- Description

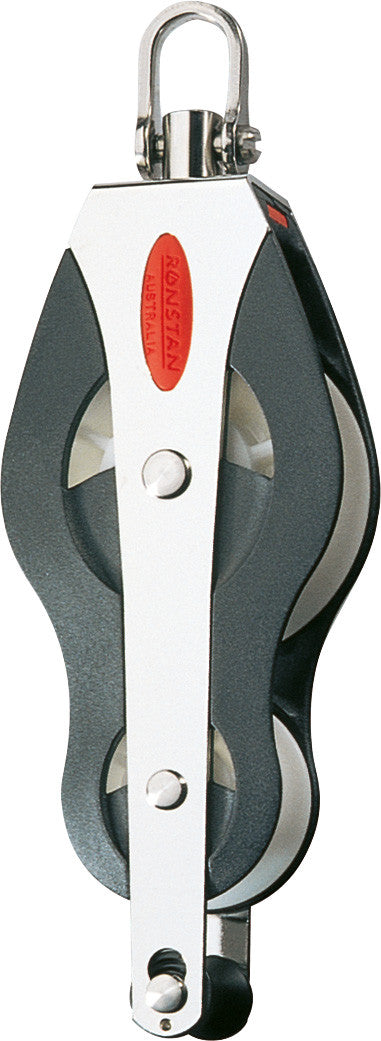

BLOCK,FIDDLE & BECKET,UNIVERSAL 12mm
SERIES 50, ALL PURPOSE
ALL PURPOSE BLOCKS
Series 50mm
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
- Snap fit removable becket pin
- Spare Parts - RF51010 Replacement Becket Pin, RF150 Shackle
| Sheave Ø | 54 + 34 mm |
|---|---|
| Max. Rope Ø | 10 mm |
| Max. Cable Ø | - mm |
| Pin Ø | 5.0 mm |
| M.W.L. | 750 kg |
| B. L. | 1500 kg |
| Weight | 176 g |
PRODUCT INFORMATION
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or toolsAPPLICATIONS
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
- Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
