Ronstan

Block,Exit. Narrow 40mm. S40 Ap Max. 5/16" Rope

Block,Exit. Narrow 40mm. S40 Ap Max. 5/16" Rope

Category: Ronstan
MPN # RF45711N SKU # RF45711N
$148.00 CAD
$148.00 CAD
Shipping calculated at checkout.

⚠️ Important Pickup Information

While our retail store carries a wide selection of products shown on this website, it is not possible to stock all 80,000+ products in-store.

Please place your order online or call us before driving to the store to confirm inventory availability.

If the item is not available in-store, we can usually transfer it from our warehouse within 3–5 business days, and we'll notify you as soon as it is ready for pickup or delivery .

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120across Canada exceptions apply
View full details
  • Description

RF45711N

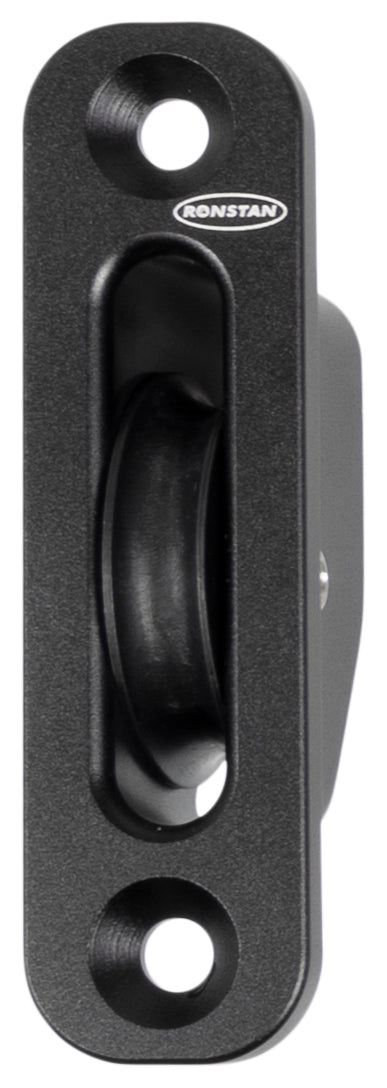

Series 40 Ball Bearing Exit Block, Narrow

40mm Acetal Sheave, Anodised Aluminium Housing, Requires 2x 6mm (1/4") Fasteners. Reduced width sheave box for lower load applications.

SPECIFICATIONS

Product Specifications
B.L. (kg) 1600
M.W.L. (kg) 400
Max. Rope diameter (mm) 8
Weight (g) 65
Sheave Material Glass Reinforced Nylon
Fastener Ø (mm) 6
Qty. Fasteners 2
Notes: MWL = 400kg dynamic load, 800kg static load.

Product Information

Exit Blocks minimise friction in lines passing through the deck or exiting masts and booms.

The RF45711N exit block features a narrow 40mm sheave, providing a compact profile for lower load applications.



TECHNICAL INFORMATION

SPECIFICATION DETAILS

Specification Details
A (mm) 58
B (mm) 16
C (mm) 30
D (mm) 75

MATERIALS

  • Sheave and ball bearings: High compression strength acetal.
  • Housing: Anodised aluminium.
