Ronstan

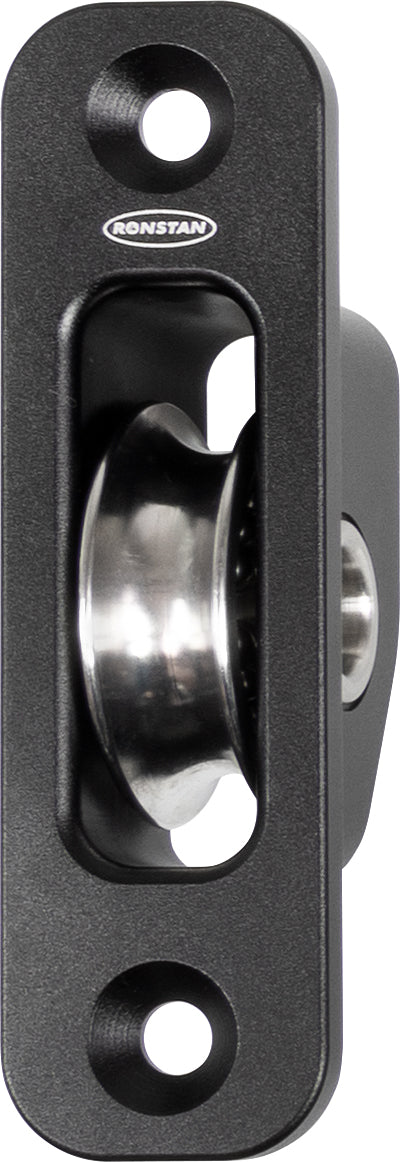

Block,Exit. Hi Load 40mm. S40 Hl Max. 3/8" Rope

Block,Exit. Hi Load 40mm. S40 Hl Max. 3/8" Rope

Category: Ronstan
MPN # RF45711HL SKU # RF45711HL
$339.00 CAD
$339.00 CAD
Shipping calculated at checkout.
ONLINE ORDERS Online orders are processed and shipped out in a timely manner as per the stated timelines of our mail order department.
STORE PICKUP However if you wish to pickup an item at the store, please call or email ahead and verify that that item is in stock at the store, if not we will gladly order it in and call you when it is ready to be picked up.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120 across Canada exceptions apply
View full details
  • Description

RF45711HL

Series 40 High Load Ball Bearing Exit Block, Stainless Steel Sheave

40mm Stainless Steel Sheave, Anodised Aluminium Housing, Requires 2x 6mm (1/4") Fasteners

SPECIFICATIONS

Product Specifications
B.L. (kg) 2000
M.W.L. (kg) 1000
Max. Rope diameter (mm) 10
Weight (g) 123
Rope Ø (mm) 10
Weight (kg) 123
Fastener Ø (mm) 6
Qty. Fasteners 2
Notes: 83mm Fastener Hole Spacing

Product Information

Exit Blocks minimise friction in lines passing through the deck or exiting masts and booms.

The RF45711HL exit block utilises our Series 40 HHL stainless steel ball bearing sheave, specifically designed for any application where high dynamic or static loads are expected. The Grade 2205 stainless sheave and hub contain captive grade 304 stainless steel ball bearings, all housed within a sleek, anodised aluminium housing.



TECHNICAL INFORMATION

SPECIFICATION DETAILS

Specification Details
A (mm) 58
B (mm) 22
C (mm) 30
D (mm) 83

MATERIALS

  • Sheave and bearing race: Grade 2205 Stainless Steel.
  • Ball bearings: Grade 304 Stainless Steel.
  • Housing: Anodised aluminium.
