- Description

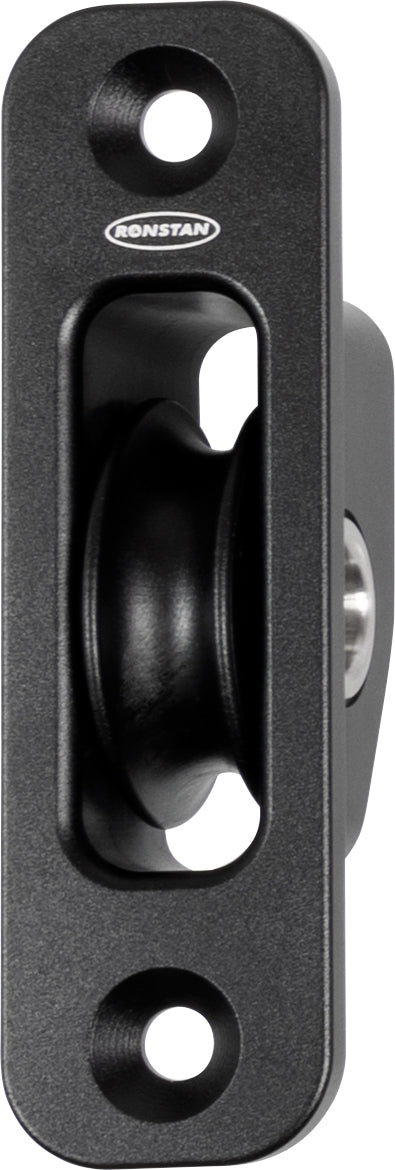

RF45711
Series 40 Ball Bearing Exit Block
40mm Acetal Sheave, Anodised Aluminium Housing, Requires 2x 6mm (1/4") Fasteners
SPECIFICATIONS
| B.L. (kg) | 2000 |
|---|---|
| M.W.L. (kg) | 800 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 77 |
| Fastener Ø (mm) | 6 |
| Qty. Fasteners | 2 |
| Notes: | MWL = 400kg dynamic load, 800kg static load. |
Product Information
Exit Blocks minimise friction in lines passing through the deck or exiting masts and booms.
The RF45711 exit block incorporates our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.
TECHNICAL INFORMATION
SPECIFICATION DETAILS
| A (mm) | 58 |
|---|---|
| B (mm) | 22 |
| C (mm) | 30 |
| D (mm) | 83 |
MATERIALS
- Sheave and ball bearings: High compression strength acetal.
- Housing: Anodised aluminium.
