Ronstan

Block,Cheak. Series 40 Orbit, Bb

Block,Cheak. Series 40 Orbit, Bb

Category: Ronstan
MPN # RF48151 SKU # RF48151
$63.50 CAD
$63.50 CAD
Shipping calculated at checkout.

⚠️ Important Pickup Information

While our retail store carries a wide selection of products shown on this website, it is not possible to stock all 80,000+ products in-store.

Please place your order online or call us before driving to the store to confirm inventory availability.

If the item is not available in-store, we can usually transfer it from our warehouse within 3–5 business days, and we'll notify you as soon as it is ready for pickup or delivery .

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120across Canada exceptions apply
View full details
  • Description

RF48151

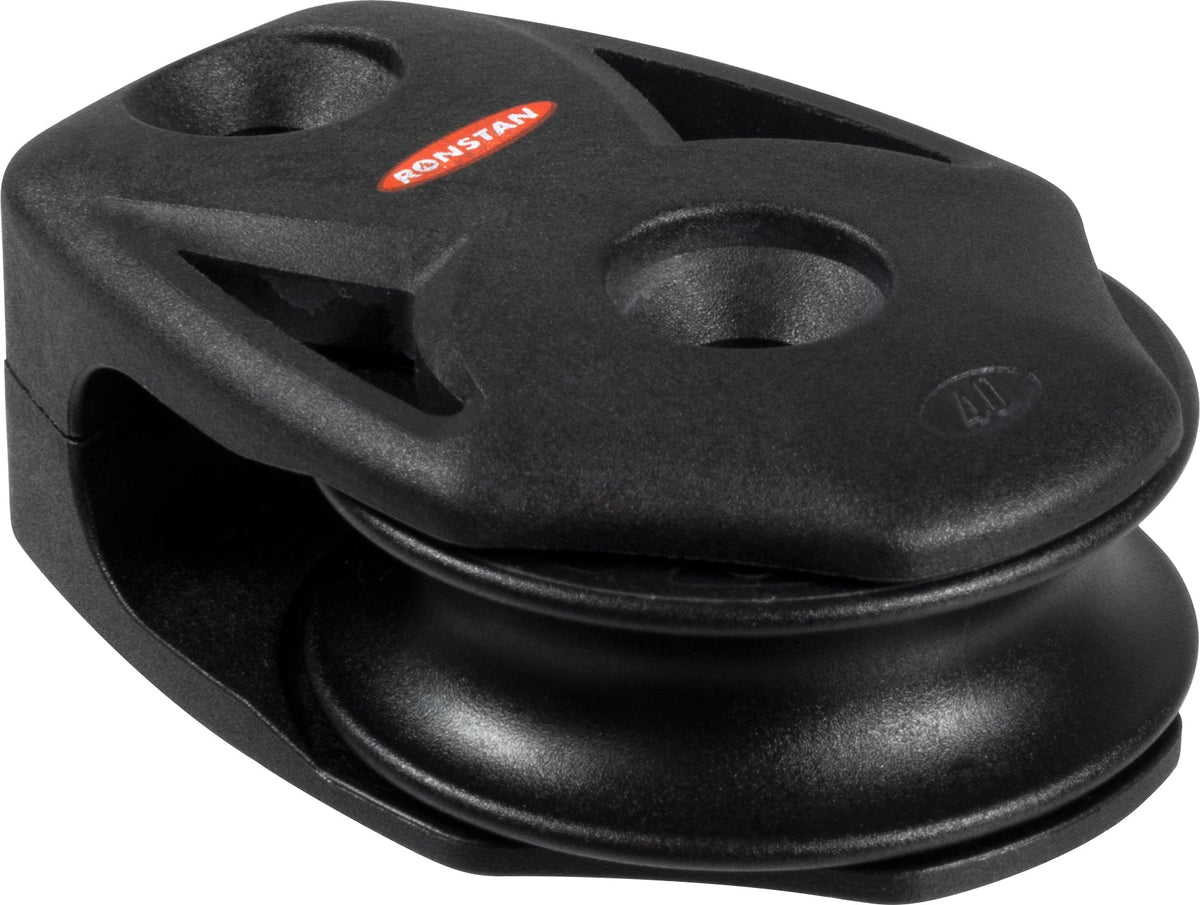

Series 40 Ball Bearing Orbit Cheek Block

Ball bearing single sheave Orbit Block™. Requires 2 x 6mm (1/4") fasteners.

FEATURES

2-stage ball bearing system.

SPECIFICATIONS


The new Series 40 ball bearing Orbit Blocks™ provide the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fibre reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the
perfect balance of performance and reliability.

The sheave incorporate our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.



TECHNICAL INFORMATION

APPLICATIONS

Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft).

Halyard, vang and backstay applications on boats to 9m (30ft).

Control line applications on larger yachts.



MATERIALS

  • Sheave and ball bearings: High compression strength acetal.
  • Frame/cheeks: Toughened, glass fibre reinforced nylon.
