- Description

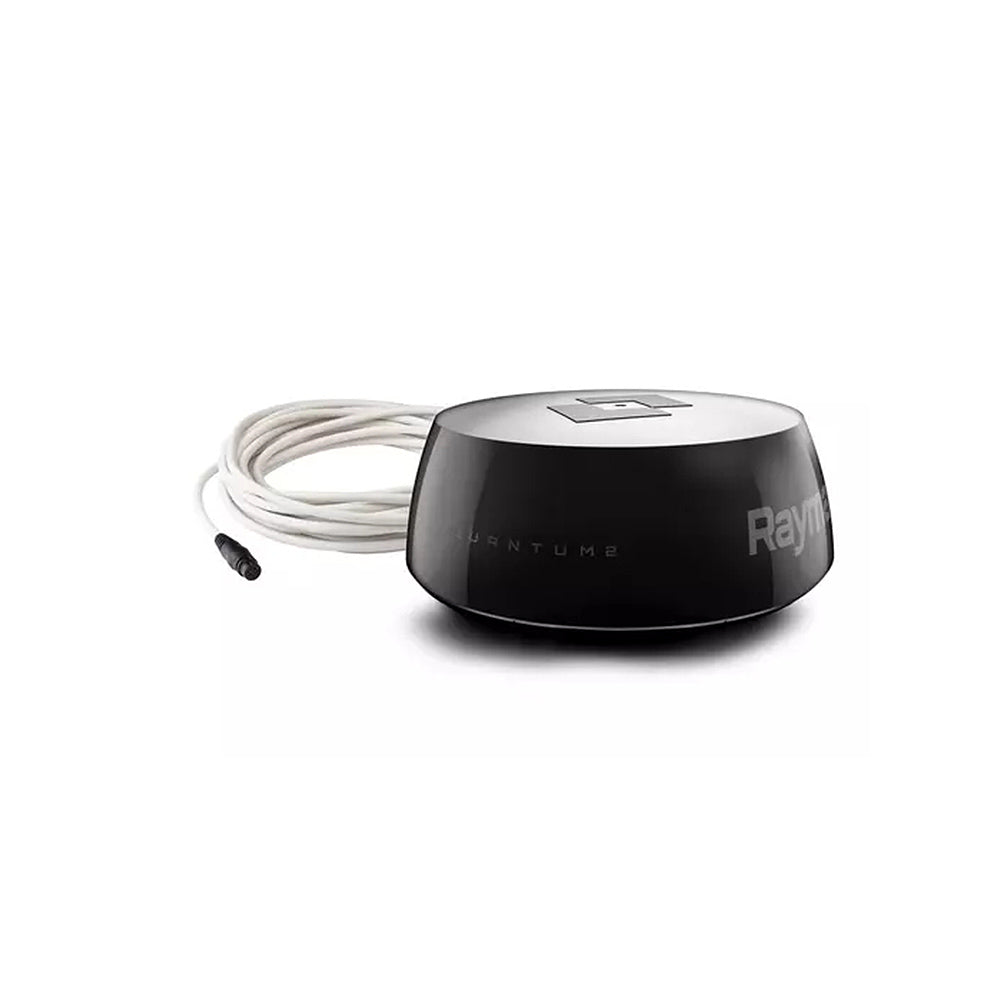

Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next-generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
Key Features
- Doppler moving target display allows for superior situational awareness at a glance
- Fully automatic ARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18 feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall, and weather
- Immediate awareness – Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin wire network connectivity
- Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions – mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail
Specifications
- Dimensions (Diameter/Height): 541.0 mm | 209.5 mm
- Weight: 5.6 kg
- Supply voltage: Either 12 V dc or 24 V dc nominal
- Operating voltage range: Minimum: 10.8 V dc / Maximum: 31.2 V dc
- Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
- Waterproofing: IPX6
- Operating temperature range: -10°C to +55°C
- Storage temperature range: -25°C to +70°C
- Additional storage conditions: Store upright; do not block vents on the underside
- Humidity: Up to 95% at 35°C
- Maximum wind speed: 100 kts
Box Includes
- Radome
- 10m Power and Data Cable
- Fixing bolts with spring washers and flat washers (M8) x 4
- Documentation
