- Description

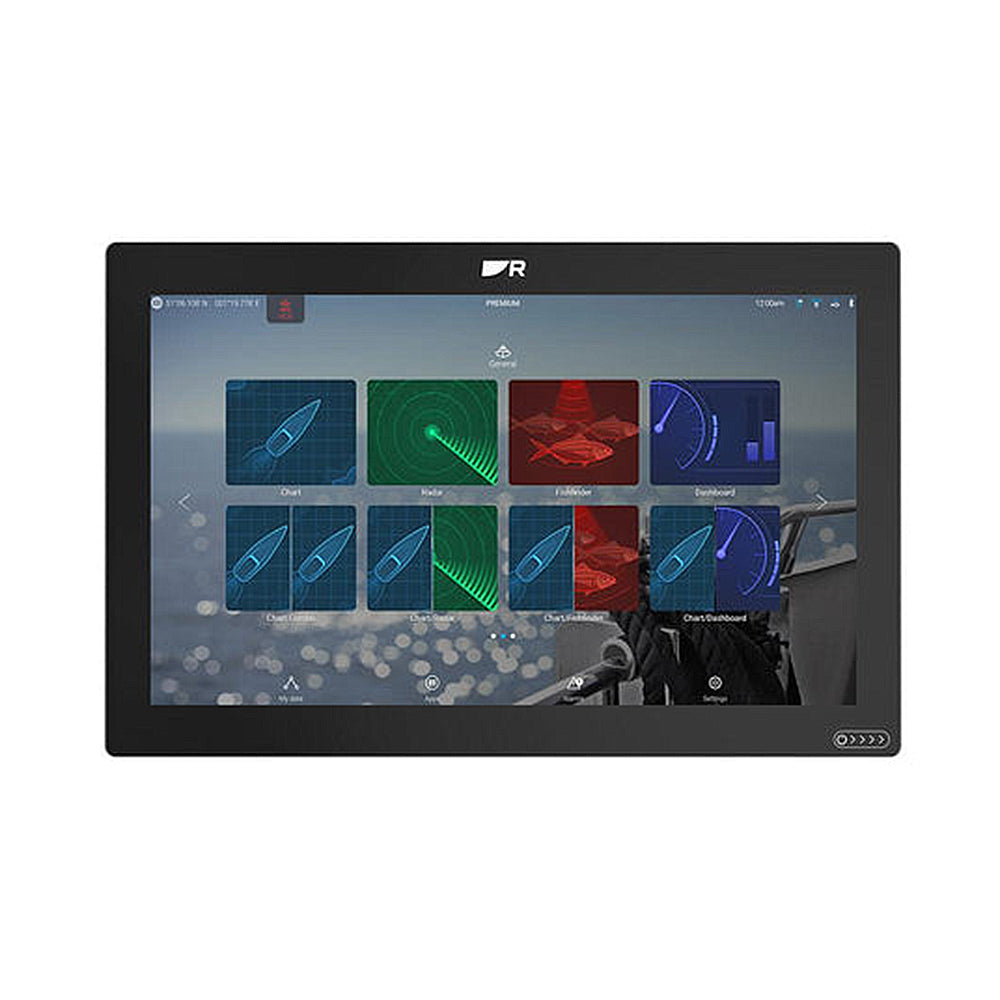

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.
Specifications
- Dimensions: Height: 289.44 mm (11.40 in), Width: 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)
- Weight: 7.6 kg (16.76 lbs)
- USB Connection: USB-A: Touch input, USB-B: Touch output
- Accessory Connection: USB Micro B
- GPS Antenna Connection: TNC Type Connector
- External Storage: Remote Card Reader Required
- Ethernet Connection: PoE RayNet (10/100/1,000 Mbits/s) x 3
- HDMI Connections: HDMI In, HDMI Out
- Audio Output: Left and Right RCA Connectors via Power/Video/Audio cable.
- Analog Video Connections: Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
- NMEA 0183 Support: Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
- NMEA 2000 Connection: DeviceNet connector
- Wireless Connections: Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
- External Alarm Connection: Bare-ended wires x 2
- Internal Storage: 64 GB Solid State
Box Includes
- MFD (Chartplotter)
- Mounting Gasket Tape
- Rear Mounting Bars x2
- Mounting Bar Fixings (M5x20 Pozi Countersunk) x 4
- Mounting Fixings: Bolts (M5x35), Wavy Washers (M5), Nuts (M5) Mounting Feet x 4
- Optional Grounding Connection (Screw (M3x5), Spring Washer (M3), Crimp Terminal (M3))
- Documentation
- DeviceNet to SeaTalking Adapter Cable 1m (3.28ft)
- RayNet (Female) to RayNet (Female) Network Cable 2m (6.56ft)
- Power/Video/Audio Cable 1.5m (4.92ft) Right-Angled
Other Details
- 19" Display
- Includes RCR-SD, Alarm, and Cable
Model: T70546
