- Description
A TRUSTED CREW MEMBER

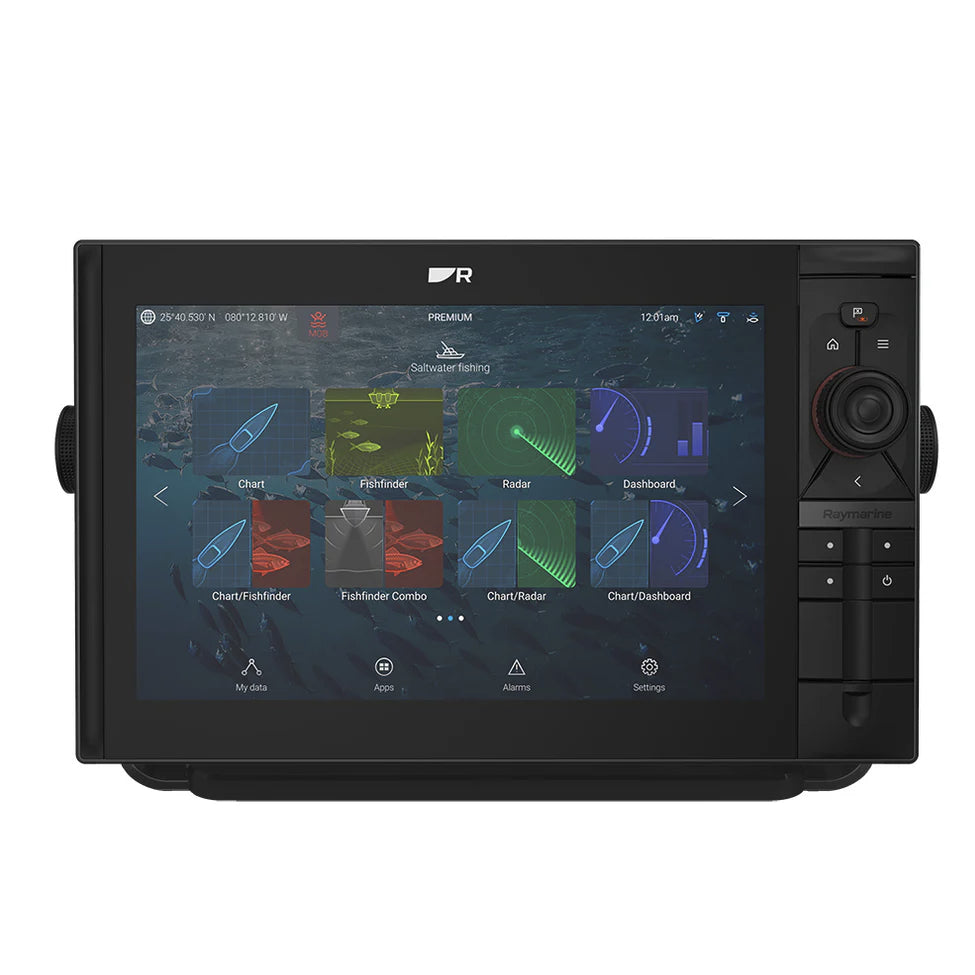

Axiom® 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™, a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom 2 Pro S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.
Dimensions
- Trunnion Mounted: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
- Surface/Flush Mounted: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)
Connections
- Ethernet Connection: 2 RayNet (10/100/1,000 Mbits/s) ports
- NMEA 2000 Connection: DeviceNet connector
- Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
- Bluetooth: v4.0
- Accessory Connection: USB Micro B
- Internal Storage: 64GB Solid State
- External Storage: 2 front-mounted MicroSDXC card slots
- Digital Video and Audio: HDMI Out Micro connector type D
- Analog Video Connections: BNC Analog video input (on power cable)
- Analog Audio Connections: RCA connectors via power cable
- External GPS Antenna: TNC connector
Box Includes
- Display Unit
- User Configurable Keypad
- Suncover
- Gasket
- Trunnion Knobs (x 2)
- Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Mounting fixings x4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92 ft)
Other Details
- 12" Display
- Includes preloaded LightHouse Charts North America chart card
- Includes 1 Free year of LightHouse Charts Premium Subscription
Model: E70655-00-102
