- Description
YOUR OFFSHORE ADVENTURE GUIDE

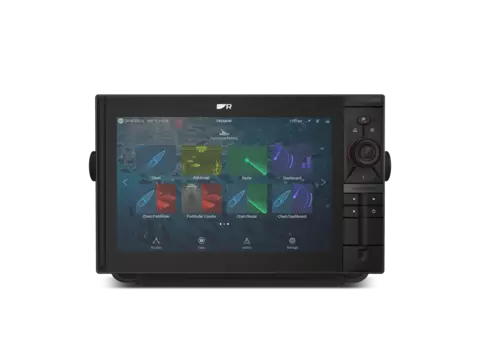

Axiom® 2 Pro combines a chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™, a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision® MAX CHIRP sonar technology.
Dimensions:
- Trunnion Mounted: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
- Surface/Flush Mounted: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)
Connections:
- Ethernet Connection: 2 RayNet (10/100/1,000 Mbits/s) Ports
- NMEA 2000 Connection: DeviceNet Connector
- Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
- Bluetooth: v4.0
- Accessory Connection: USB Micro B
- Internal Storage: 64GB Solid State
- External Storage: 2 Front-Mounted MicroSDXC Card Slots
- Digital Video and Audio: HDMI Out Micro Connector Type-D
- Analog Video Connection: BNC Analog Video Input (on power cable)
- Analog Audio Connection: RCA Connectors via power cable
- External GPS Antenna: TNC Connector
Box Includes:
- Display Unit
- User Configurable Keypad
- Suncover
- Gasket
- Trunnion Knobs (x2)
- Trunnion Bracket (Axiom 2 Pro 9 and 12 Only)
- Optional Grounding Connection (Screw (M3x5), Spring Washer (M3), Crimp Terminal (M3))
- DeviceNet to SeaTalkng Adaptor Cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) Network Cable 2 m (6.56 ft)
- Mounting Fixings x4
- Documentation
- Power/Video/Audio Cable 1.5 m (4.92 ft)
Other Details
- 12" Display
- Charts not included in this kit
Model: E70656
