Ancor

Ancor Wire Seals

Ancor Wire Seals

MPN # 764998 SKU # 069255
$13.88 CAD
Regular price Sale price $13.88 CAD
Shipping calculated at checkout.
Part #
ONLINE ORDERS Online orders are processed and shipped out in a timely manner as per the stated timelines of our mail order department.
STORE PICKUP However if you wish to pickup an item at the store, please call or email ahead and verify that that item is in stock at the store, if not we will gladly order it in and call you when it is ready to be picked up.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120 across Canada exceptions apply
View full details
  • Description

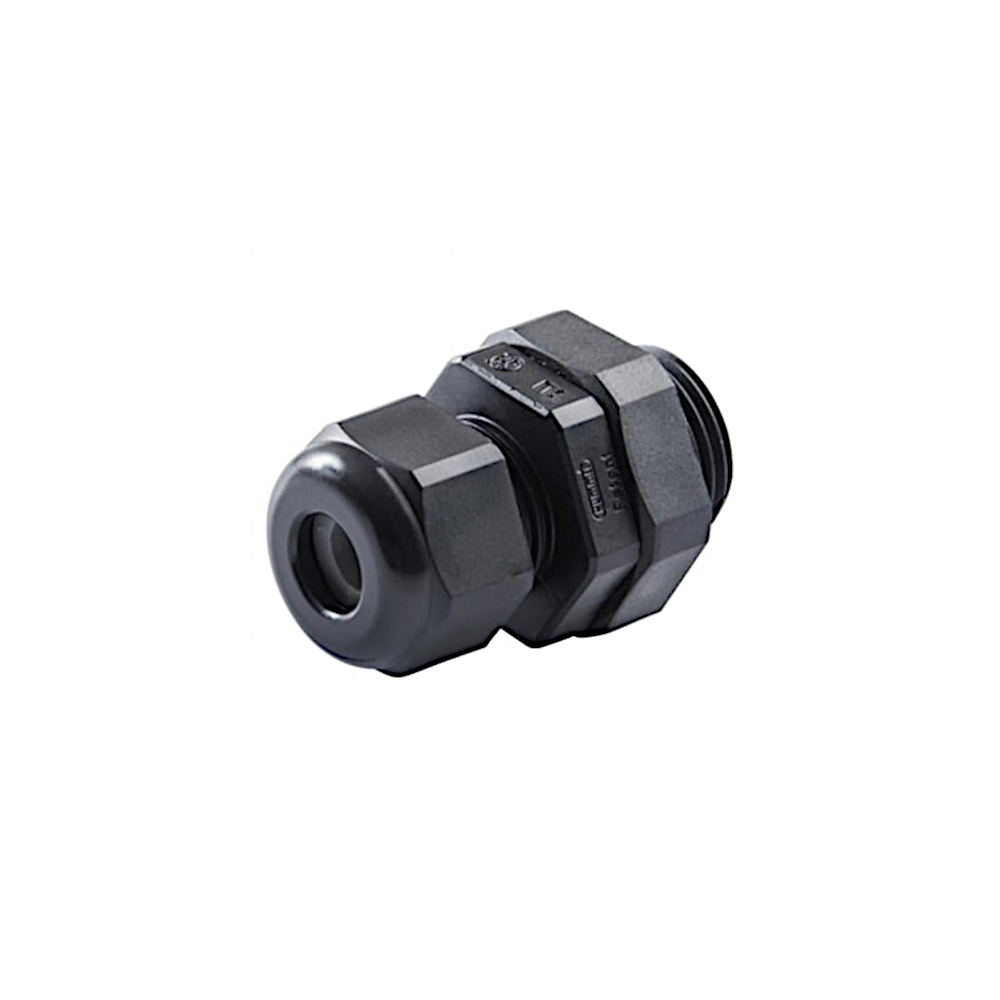

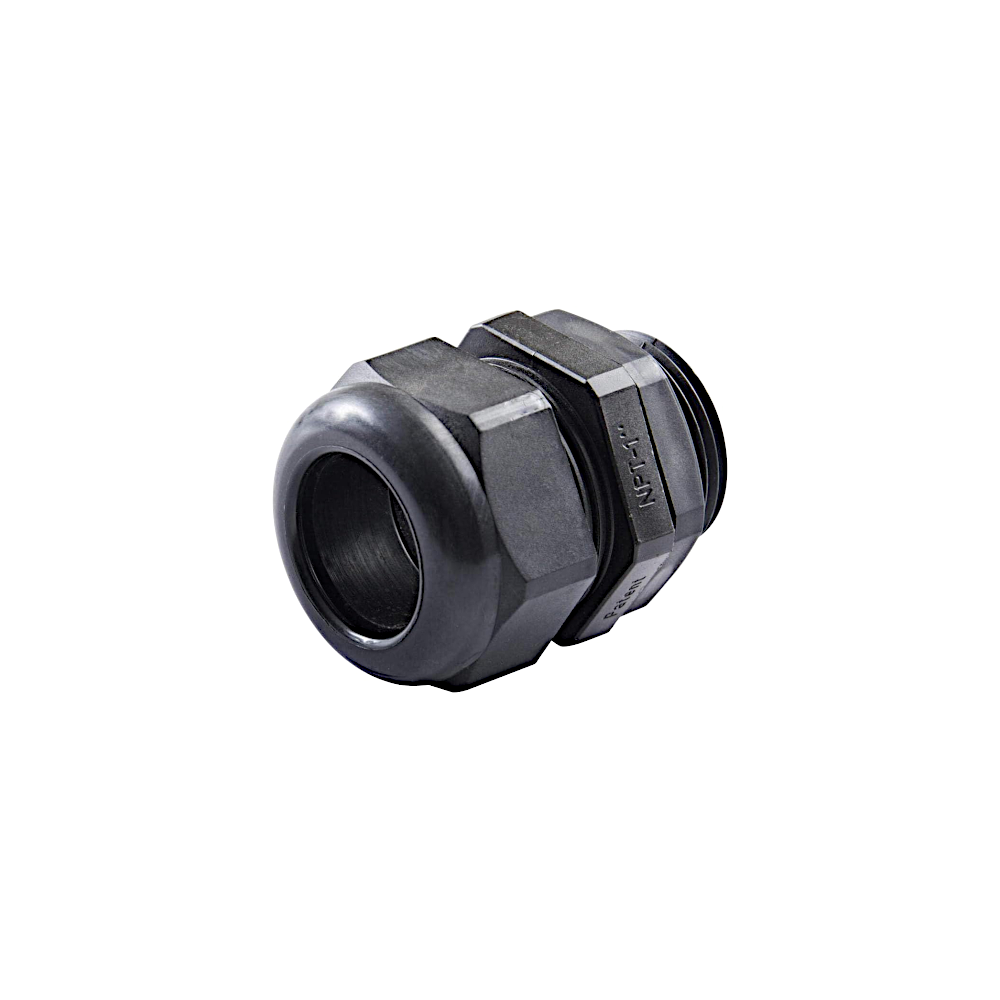

Ancor Wire Seals

  • Made of Nylon 6/6 Flame-Resistant, Self-Extinguishing Buna-N Form Seal
  • All seals exceed NEMA Type 4X and Type 6 Specs
  • Overlapping clamping spines allow for superior pull0out protection and resistance
  • Strain relief fittings are resistant to salt water, acids, alkalis, alcohol, oils, and are non-corrosive for use in marine environments
  • Good underwater to 300 ft. / 91.4 m (150 PSIG) provided there is a liquid tight seal between body and housing
  • Provide low cost cable entries into panels and junction boxes
  • UL 94 v-0
Descriptions For Use With Thread Size Cable Range Clearance Hole Body Length Thread Length Qty/Pkg Part #
Round Cable 18 - 10 AWG 3/8" NPT .08" - .24" (2 - 6 mm) .68" .87" .59" 1 764998
Round Cable 10 - 2 AWG 1/2" NPT .20" - .47" (5 - 12 mm) .83" 1.06" .51" 1 765000
Round or Flat Cable 4 - 1, 14/3 - 12/3 & 12/2 - 10/2 AWG 1/2" NPT .24" - .55" (6 - 14 mm) .83" 1.10" .51" 1 765002
Round Cable 1 - 3/0 AWG 3/4" NPT .51" - .71" (13 - 18 mm) 1.05" 1.22" .51" 1 765004
Round Cable 4/0 AWG 1" NPT .71" - .98" (18 - 25 mm) 1.35" 1.53" .75" 1 765006
