- Description

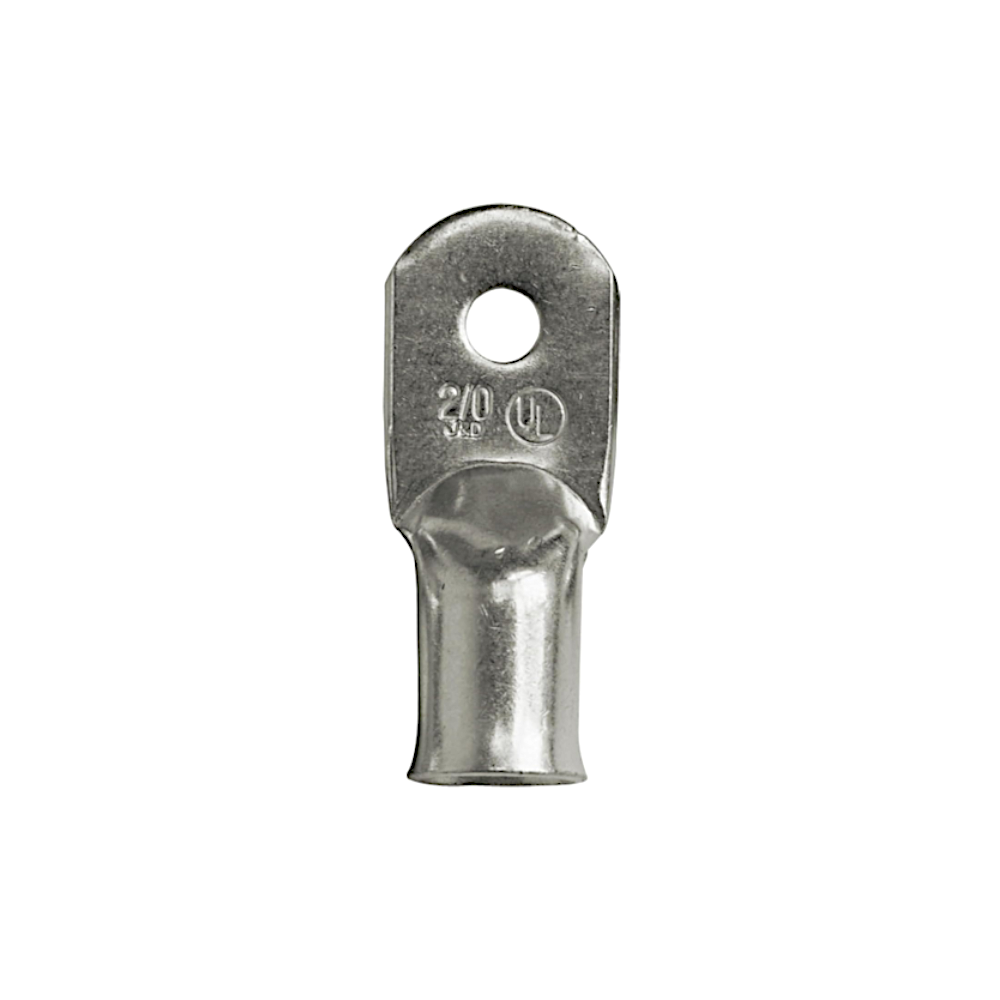

Ancor Tinned Copper Lugs
- Ancor Marine Grade Lugs are manufactured from heavy-duty annealed tinned copper, providing maximum current flow
- 100% tin plated copper resists corrosion from salt and moisture
- Seamless barrel design allows for maximum strength when crimped
- Closed-end design seals out moisture so cables stay dry and corrosion free
- UL 486A

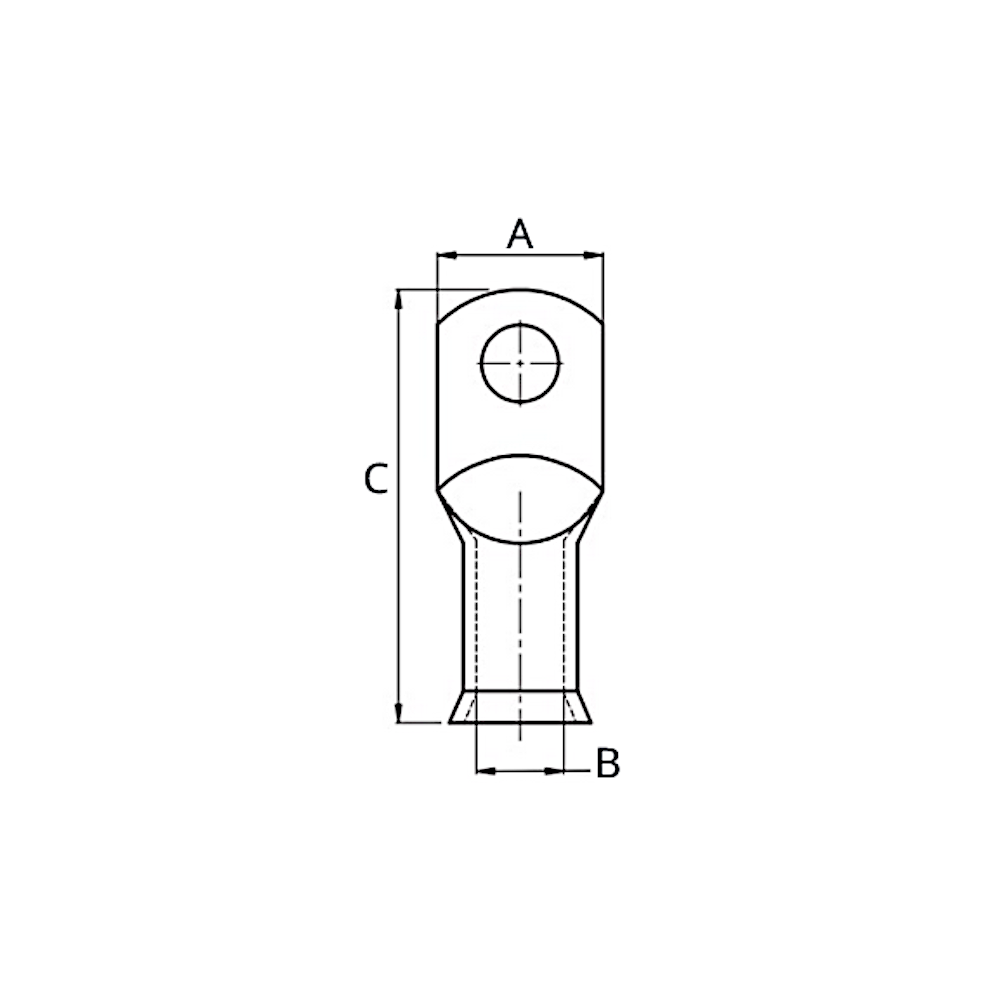

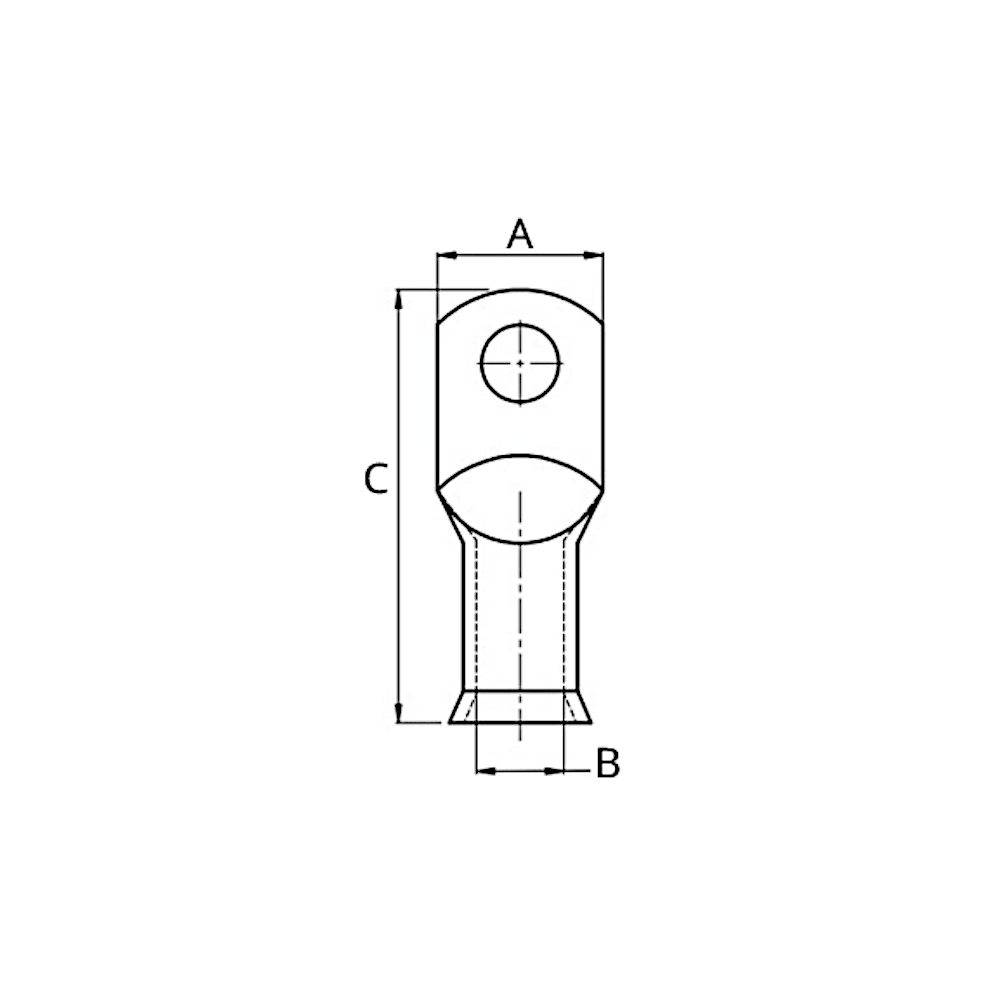

Dimensions
| AWG | A | B | C |
| 8 | 0.465" |
0.190" | 1.313" |
| 6 | 0.540" | 0.232" | 1.512" |
| 4 | 0.545" | 0.280" | 1.606" |
| 2 | 0.650" | 0.336" | 1.622"-1.772" |
| 1 | 0.645" | 0.360" | 1.718"-1.845" |
| 1/0 | 0.725" | 0.410" | 1.845" |
| 2/0 | 0.825" | 0.460" | 2.236"-2.268" |
| 4/0 | 1.015" | 0.560" | 2.563" |
