- Description

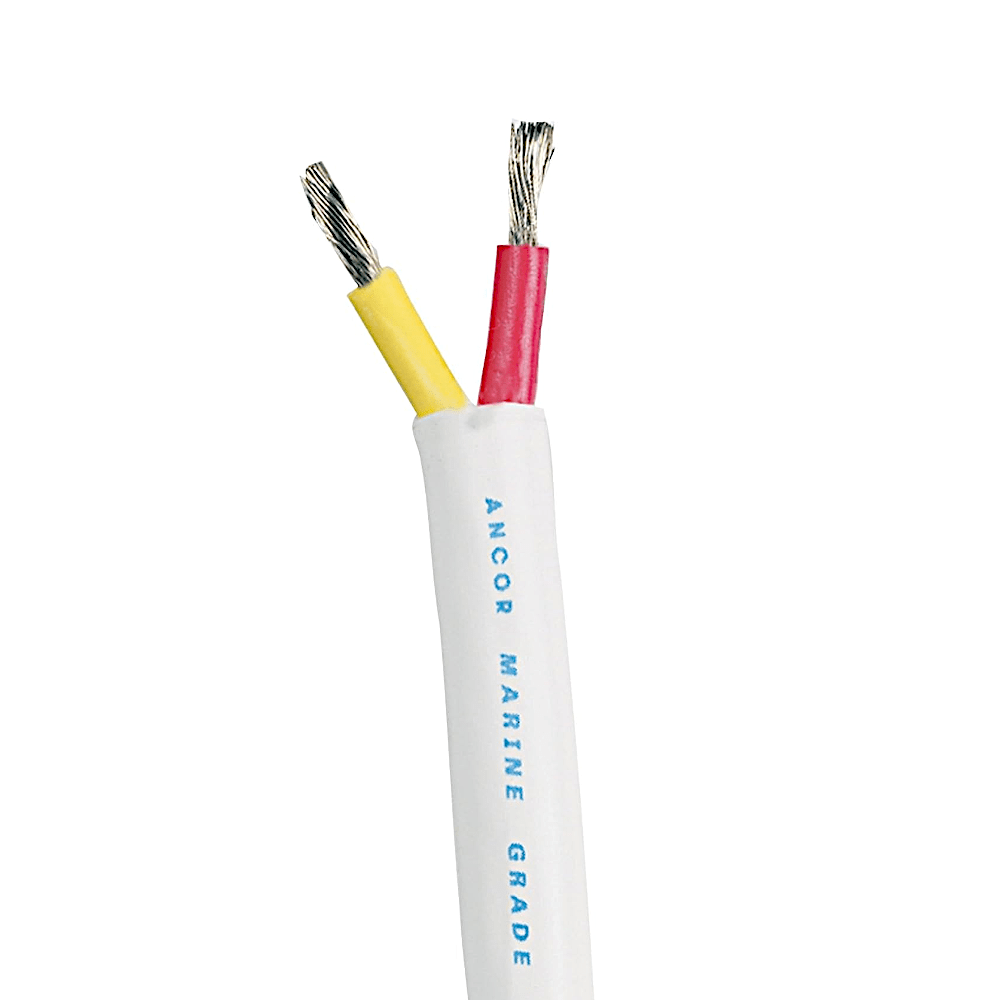

Ancor Safety Duplex Cable
UL 1426 Tinned Boat Cable
Ancor Safety Duplex Cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC Standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 Standards and are made from the highest quality ultra flexible (Type 3/Class K) Tinned Copper Stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600 Volts, 105° C Dry and 75° C wet, stays flexible even in extreme cold (-40° F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation.
Conductor Colors: Red/Yellow
NOTE: Full Rolls vary in Length (ft.)
- 10/2 AWG (2 x 5 mm²) - 400 ft.
- 12/2 AWG (2 x 3 mm²) - 250 ft.
- 14/2 AWG (2 x 2 mm²) - 1000 ft.
- 16/2 AWG (2 x 1 mm²) - 500 ft.
- 18/2 AWG (2 x 0.8 mm²) - 500 ft.
