- Description

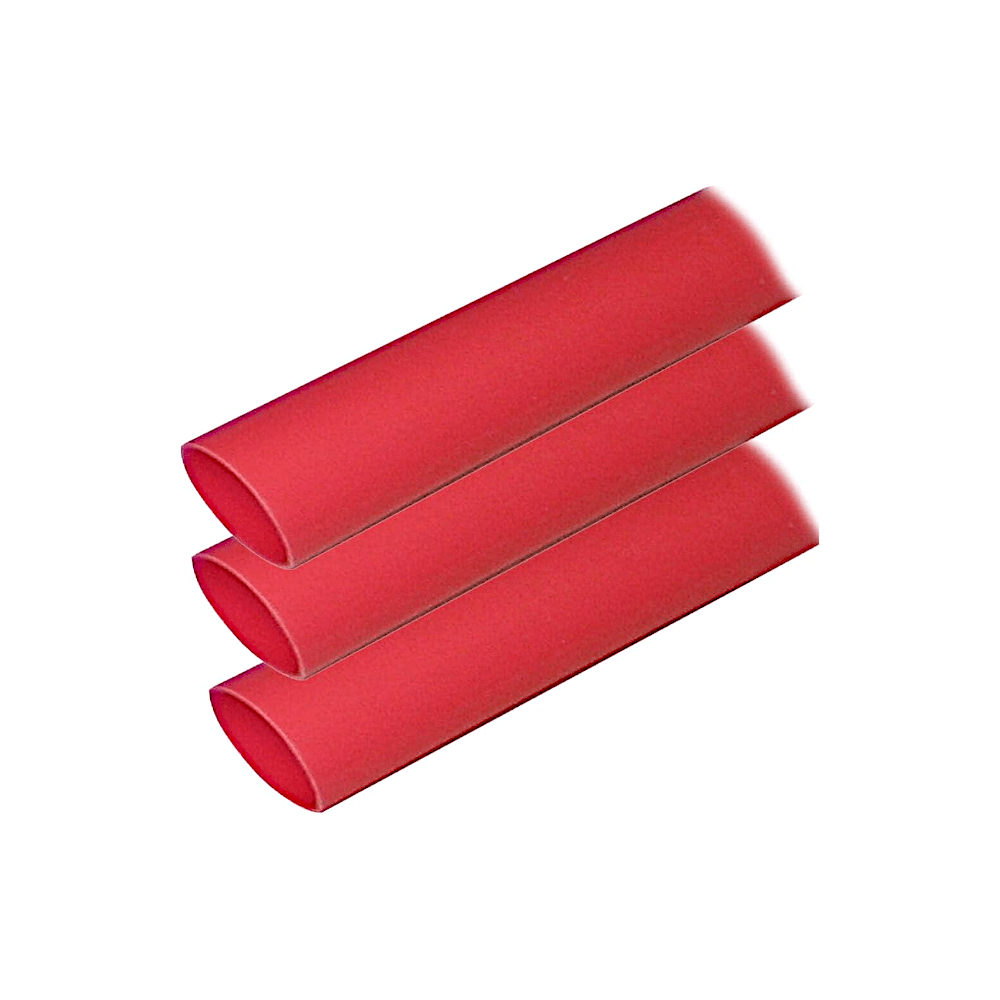

Ancor Adhesive Lined Heat Shrink Tubing - Red
- Cross-linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
- Heat activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 of the original size
- Shrinks at 257° F / 125° C
- Operating temperature range of -40° F to 230° F / -40° C to 110° C
Specifications (3:1 Ratio)
| Size | Shrinks To | Wire Range (AWG) |
| 1/8" (3.2 mm) | 1/32" (0.8 mm) | <18 (<0.8 mm²) |
| 3/16" (4.8 mm) | 1/16" (1.6 mm) | 20-12 (0.5-3 mm²) |
| 1/4" (6.4 mm) | 5/64" (2 mm) | 16-10 (1-5 mm²) |
| 3/8" (9.5 mm) |
1/8" (3.2 mm) |
12-8 (3-8 mm²) |
| 1/2" (12.7 mm) | 5/32 (4 mm) | 8-4 (8-19 mm²) |
| 3/4" (19 mm) | 1/4" (6.4 mm) | 8-2/0 (13-62 mm²) |
| 1" (25.4 mm) | 5/16" (7.9 mm) | 2-4/0 (32-103 mm²) |
