- Description

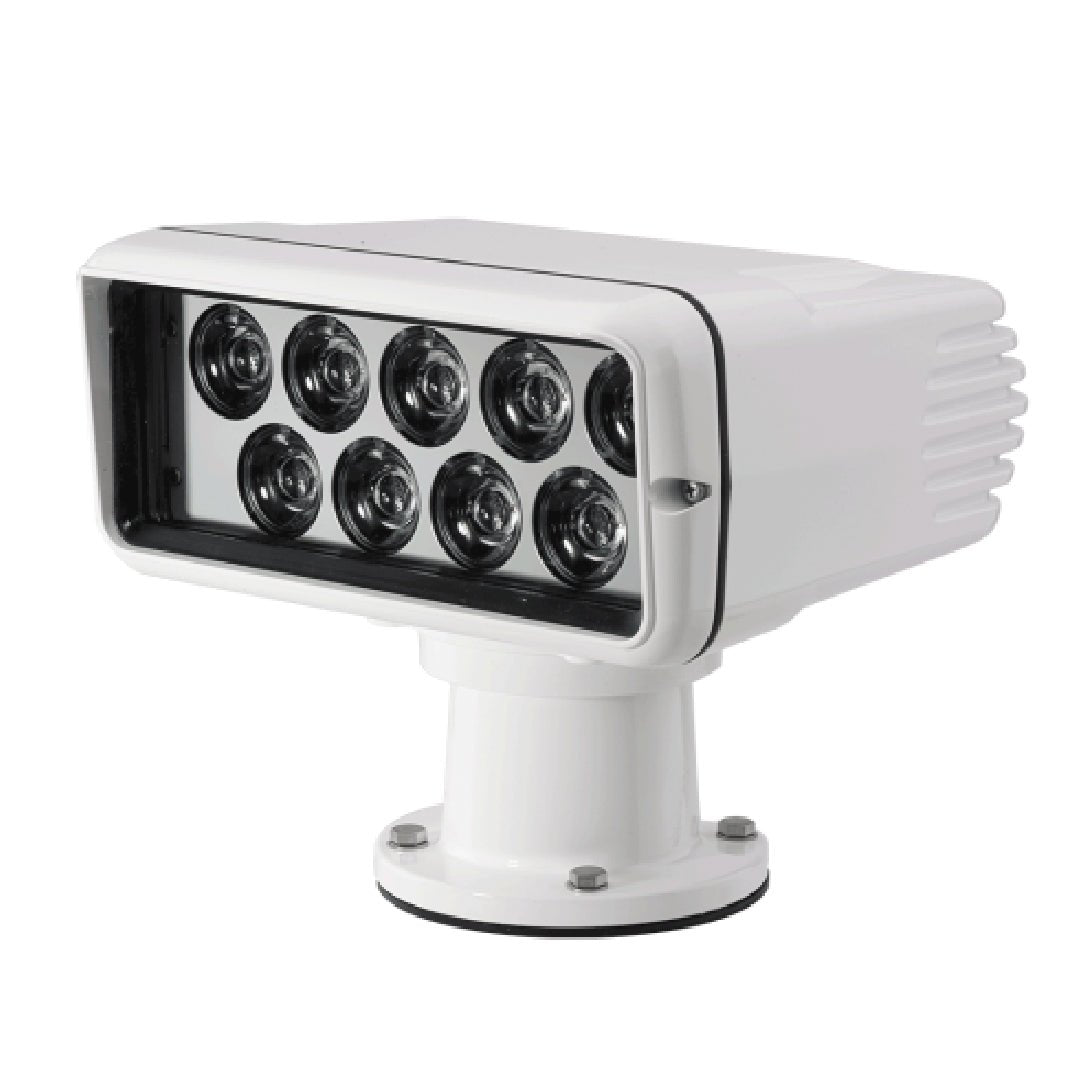

The RCL-100 LED searchlight continues to utilize the same rugged design as the original RCL-100D, but incorporates a new efficient 9 LED array that produces over 220,000 candelas of light. The strong and light aluminum housing along with glass lens are weather-sealed for years of trouble-free operation. Other features include a wired remote that allows continuous 360 degrees of rotation at fast or slow speed without the hassle of a hard stop. With a 7-degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys, and docks a breeze.
SPECIAL ORDER ITEMNot all searchlights are created equal and the body is triple-primed and painted with UV stabilizer to survive years in the harsh marine environment. The RCL-100 LED searchlight internals a fully enclosed and provide precise pitch control of the beam while staying protected. The efficiently designed LED array provide over 40,000 hours. The light also includes our Exclusive XRCiZ feature, independently rotating every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional. The RCL-100 LED is weather-resistant and operates with 12 or 24 DC power.
The new ACR RCL-100 LED light is sold in a convenient kit configured as follows.
Wired Kit: RCL-100 LED Searchlight with Master Controller and Wired Point Pad Controller (P/N 1951 or 1951.B) Main Features of the New RCL-100 LED:
Ultra-bright, 9 LED array generates over 220,000 peak candelaEfficient, long-life LED’s – 40,000 operating hoursReduced power consumption demand by up to 50% on 12V vesselsThe controller has state-of-the-art electronics to protect the light from most power surgesInternal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weatherRugged triple-primed and sealed, marine-grade aluminum housingIncludes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options includedExclusive XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functionalThe wiring harness of 15 feet (4.57 m)Two-speed motor
ACR Product Number 1951 (White) / 1951.B (Black)Size 8 x 9 x 8” (20.3 x 22.9 x 20.3 cm)Weight 7.2 lbs (3.2 kg)Material 518 Die-cast aluminumColor White or BlackOperation Remote-controlled wired Point PadBeam Angle 7° vertical, 7° horizontalElevation Angle 9° up, 17° downRotation 360° continuousRotation Speed Fast 31° per second, slow 20° per secondElevation Speed 2.8° per secondLamp 9 LED Array (220,000 cd)Accessories Master Controller (URC-103) and Point Pad Installation Kit (9283.4), Master Controller Kit (1949)Footprint Diameter (without pedestal) 4.75” (120.7 mm)
