- Description

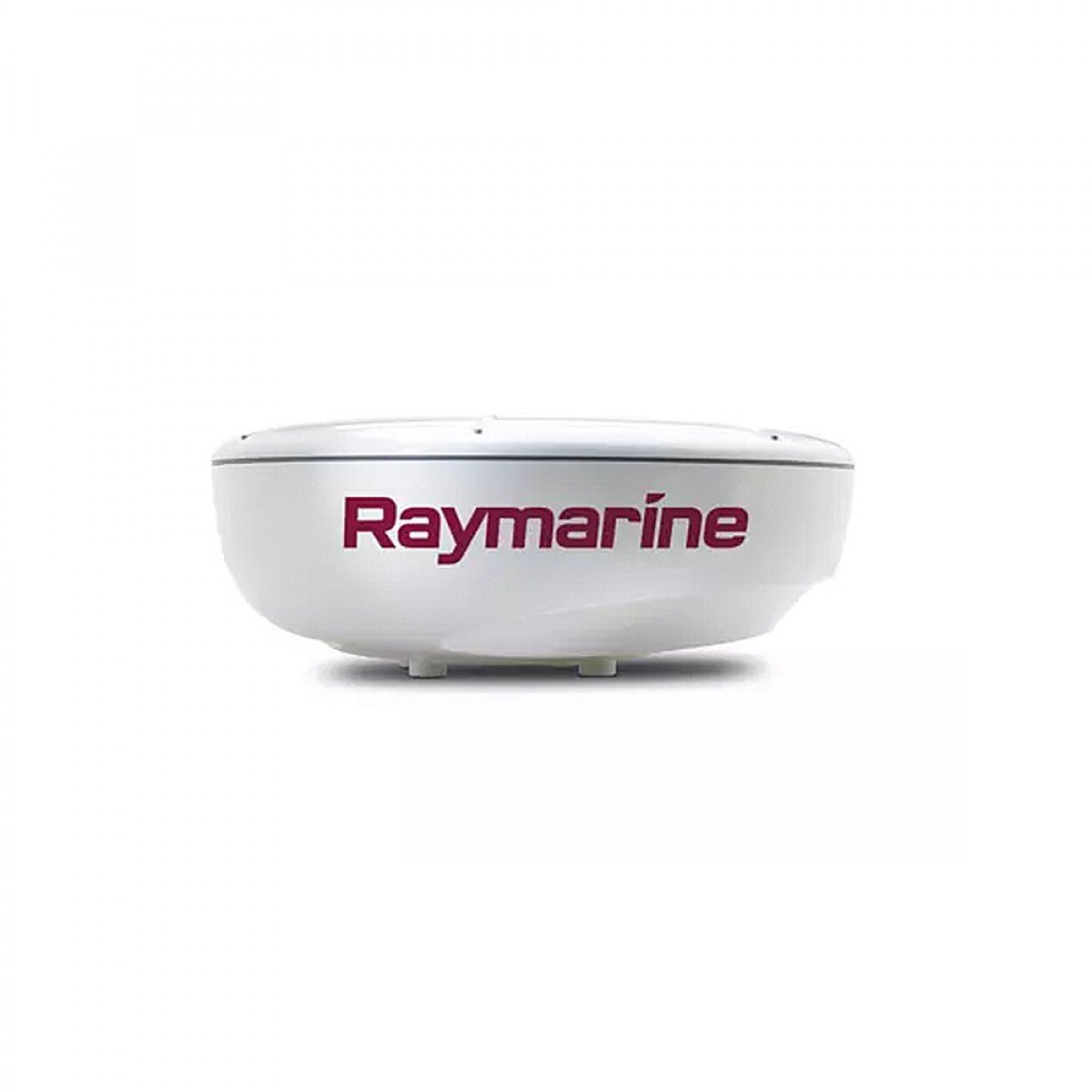

Proven magnetron-based high-performance radomes for commercial applications. Trusted by the United States Coast Guard and available in 18" and 24" versions.
Day and night, the Raymarine HD Radomes keep you aware of surrounding traffic, hazards, obstacles, and approaching weather. Navigate confidently in dense fog, rain, and limited visibility. Radome antennas are the perfect blend of compact size, lightweight, and high performance. Choose a Radome antenna when space is a premium or restricted by rigging. HD Radome scanners deliver trusted radar performance while consuming less power than magnetron-based open array scanners.
HD Radome Key Features
- Powerful 4kW transmitter delivers trusted Raymarine radar performance
- Automatic tuning modes deliver superior target detection and lifelike target presentation
- Buoy, Harbor, Coastal, Offshore, and Bird automatic tuning modes
- Manual radar adjustments for Tune, Gain, Color Gain, Sea Clutter, and Rain
- An adaptive transmitter/receiver seamlessly adapts to shifts in the environment, ensuring reliable target returns in all sea conditions
- Enhanced collision avoidance with MARPA target tracking
- Fast target tracking with a 48 RPM scanner rotation speed
- Compatible with Raymarine Axiom family chartplotters
- Support for radar/chart overlay, AIS target overlay, and FLIR camera target tracking with Axiom chartplotter displays
Box Includes
The following parts are supplied with both the 18" and 24" HD Radome
- Radome Antenna
- M8 bolt (x4)
- Spring washer (x4)
- Flat washer (x4)
- Denso paste
- Installation template
General Specifications
- Dimensions - 18" antenna: Ì?åâ?521 mm x 247 mm (20.5 in x 9.7 in)
- Dimensions - 24" antenna: Ì?åâ?652 mm x 247 mm (25.67 in x 9.7 in)
- Weight - 18" antenna: 9.5 kg (21 lbs)
- Ì?åÇÌ??Weight - 24" antenna: 10 kg (22 lbs)
- Supply voltage:Ì?åÇÌ??
- Either 12 V dc or 24 V dc nominal
- Minimum: 10.8 V
- Maximum: 33 V
- Power consumption: 60 W (25 W standby)
- Waterproof to: IPX6
- Operating temperature range: -25 Ì?åÇåÎ̤C to +55 Ì?åÇåÎ̤C (-13 Ì?åÇåÎ̤F to +131 Ì?åÇåÎ̤F)
- Humidity: Up to 95% at 35 Ì?åÇåÎ̤C (95 Ì?åÇåÎ̤F)
- Maximum wind speed: 100 kts
- Maximum range scale: 48 Nautical miles (Nm)
Transmitter Specifications
- Type: Solid-state modulator, driving magnetron
- Transmit Frequency: 9405 MHz Ì?åÇåÎå±25 MHz
- Peak Power Output: 4 kW
- Duplexer: Circulator
- Standby Mode:
- Magnetron heater - ON
- Magnetron control - ON
- All other services - OFF
Antenna Specifications
- Type: Patch array
- Beamwidth (nominal):Ì?åÇÌ??
- Horizontal: 4.9Ì?åÇåÎ̤ (18 in antenna), 3.9Ì?åÇåÎ̤ (24 in antenna)
- Vertical: 25Ì?åÇåÎ̤
- Polarization: Horizontal
- Rotation Speed:Ì?åÇÌ??
- 24 rpm nominal
- 48 rpm with compatible displays
Receiver Specifications
- Ì?åÇÌ??Intermediate Frequency: 70 MHz
- Receiver Characteristic: Linear
- Receiver Noise: Less than 5 dB (including low noise converter and IF amplifier)
- Bandwidth: Matched digital filter for each pulse length
Compatibility
| Axiom 2 XL - 16", 19", 22", and 24" models | YES |
| Axiom 2 Pro - 9", 12" and 16" RVM and -S variants | YES |
| Axiom+ - 7", 9", and 12" RV and chartplotter variants | YES |
| Element - 7",9", and 12" HV and -S variants | NO |
| Axiom XL - 16", 19", 22", and 24" models | YES |
| Axiom Pro - 9", 12" and 16" RVX and -S variants | YES |
| Axiom - 7", 9," and 12" RV and chartplotter variants | YES |
| gS-Series - gS95, gS125 and gS165 | YES |
| eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165 | YES |
| e-Series - e7, e7D, e95, e97, e125, e127, e165 | YES |
| c-Series - c95, c97, c125, c127 | YES |
| a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128 | YES |
| E-Series Widescreen - E90W, E120W, E140W | YES |
| C-Series Widescreen - C90W, C120W, C140W | YES |
| G-Series Classic - GPM400 | YES |
| E-Series Classic - E80, E120 | YES |
| C-Series Classic - C70, C80, C120 | NO |
Note: C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.
