- Description

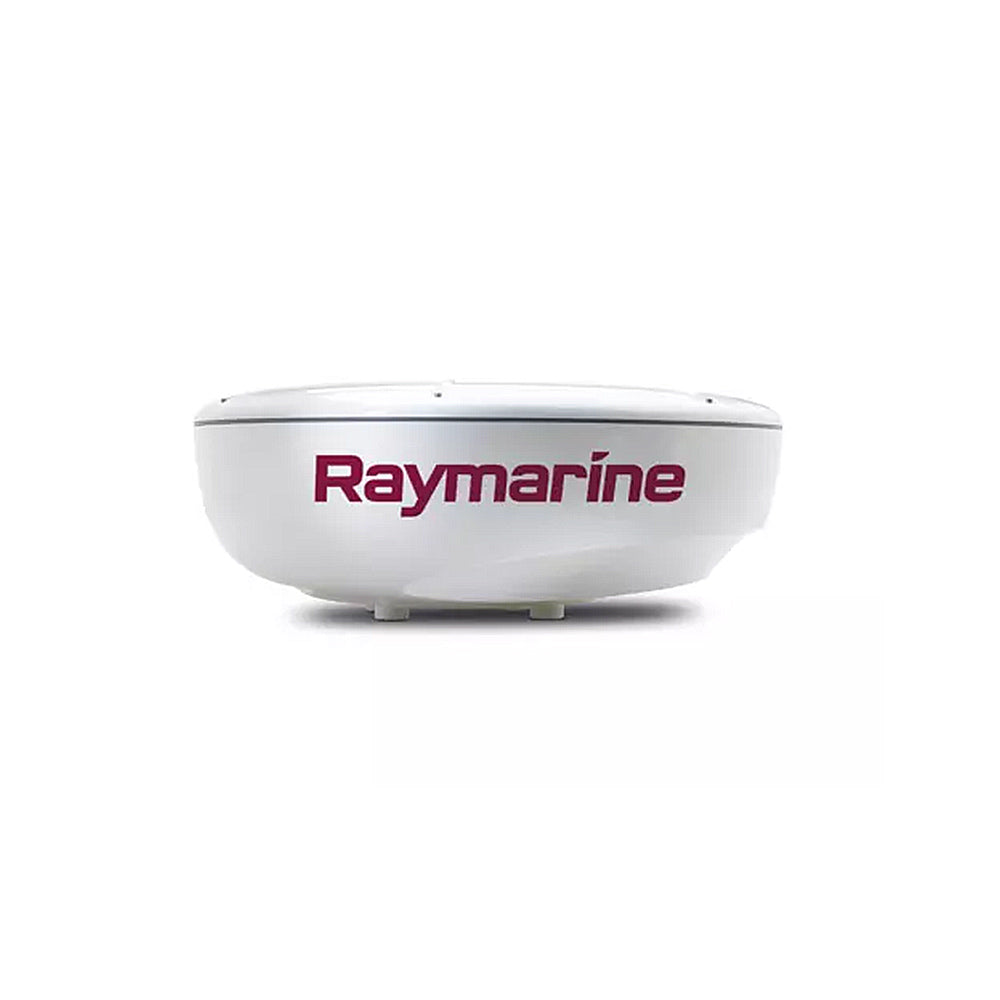

Day and night, Raymarine HD Radomes keep you aware of surrounding traffic, hazards, obstacles, and approaching weather. Navigate confidently in dense fog, rain, and limited visibility. Radome antennas are the perfect blend of compact size, lightweight, and high performance. Choose a Radome antenna when space is a premium or restricted by rigging. HD Radome scanners deliver trusted radar performance while consuming less power than magnetron-based open array scanners.
Features
- Powerful 4kW transmitter delivers trusted Raymarine radar performance
- Automatic tuning modes deliver superior target detection and lifelike target presentation
- Buoy, Harbor, Coastal, Offshore, and Bird automatic tuning modes
- Manual radar adjustments for Tune, Gain, Color Gain, Sea Clutter, and Rain
- An adaptive transmitter/receiver seamlessly adapts to shifts in the environment, ensuring reliable target returns in all sea conditions
- Enhanced collision avoidance with MARPA target tracking
- Fast target tracking with 48 RPM scanner rotation speed
- Compatible with Raymarine Axiom family chartplotters
- Support for radar/chart overlay, AIS target overlay, and FLIR camera target tracking with Axiom chartplotter displays
Specifications
- Dimensions (Diameter / Height) - 24" Antenna: 652 mm x 247 mm (25.67 in x 9.7 in)
- Weight - 24" Antenna: 10 kg (22 lbs)
- Supply Voltage: Either 12 V dc or 24 V dc nominal / Minimum: 10.8 V / Maximum: 33 V
- Power consumption: 60 W (25 W standby)
- Waterproof to: IPX6
- Operating temperature range: -25 °C to +55 °C (-13 °F to +131 °F)
- Humidity: Up to 95% at 35 °C (95 °F)
- Maximum wind speed: 100 kts
- Maximum range scale: 48 Nautical miles (Nm)
Box Includes
- Radome Antenna
- M8 bolt (x4)
- Spring washer (x4)
- Flat washer (x4)
- Denso paste
- Installation template
