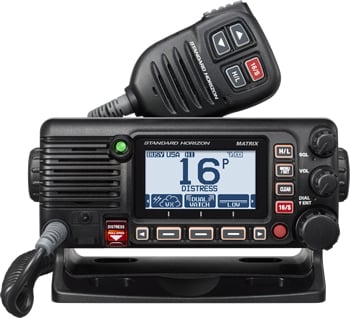

Standard Horizon GX2400 Matrix AIS/GPS/NMEA2000 VHF Radio
Power, Performance, Reliability
Featuring the new GX2400 Matrix AIS/GPS/NMEA2000 — a powerful, full-featured fixed-mount VHF designed for professional-grade performance and complete integration with your vessel’s navigation network.
SPECIAL ORDER
Key Features
- NMEA2000 and NMEA0183 compatible for seamless system integration
- Second station capability with wired RAM4 or wireless RAM4X (when used with the optional SCU-30 Wi-Fi module)
- Built-in 66-channel GPS receiver
- Integrated 32-code and 4-code voice scramblers for secure communications
- Noise-canceling function for both transmit and receive audio
- Meets ITU-R M.493-15 Class D Digital Selective Calling (DSC) standards
- Dedicated CH70 receiver for DSC call monitoring
- AIS/AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG, and COG
- E2O (Easy to Operate) icon and menu system
- Preset key stores up to 10 favorite channels
- Intercom feature between the main radio and second station
- Programmable Scan, Priority Scan, and Multi-Watch modes
- DSC position request and report functions
- GPS Compass, Waypoint, and GPS status pages
- Enter, save, and navigate to a waypoint using the Compass page
- Navigation data displayed: LAT/LON, Time, SOG, and COG
- Programmable CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach) alarms
- Commercial-grade receiver with spurious and image rejection better than –80 dB
- Integrated 30W PA/Loud Hailer with fog signals and listen-back capability
- GM (Group Monitor) using DSC group position calling
- MOB (Man Overboard) function
- Busy LED indicator for active channel monitoring
- Selectable night mode display
- NOAA weather channels with weather alert function
NMEA2000 Integration
The GX2400’s integrated NMEA2000 interface supports all major PGNs for navigation, GPS, AIS, and DSC functions. Simply plug it into your existing NMEA2000 network to enjoy full VHF and DSC functionality throughout your vessel.
Wireless Second Station (RAM4X) Capability
Control all radio functions wirelessly with the optional RAM4X Remote Access Microphone. Using the SCU-30 Wireless Access Point connected to the back of the GX2400, up to four RAM4X units can be synced. With a range of up to 65 feet, you can control radio operations — including DSC calling, position polling, group calling, and intercom functions — from anywhere on board.
Built-In AIS Receiver
The GX2400 displays AIS target data directly on the front panel, including MMSI, Call Sign, Ship Name, BRG, DST, SOG, and COG. AIS functionality allows direct DSC calls to nearby vessels, displays target positions relative to your own vessel, and issues CPA/TCPA alarms to alert you of potential collision risks.
Integrated 30W PA / Loudhailer
The built-in 30-watt PA and Loudhailer system includes preprogrammed foghorn signals, siren, and horn modes. It also supports listen-back operation, allowing two-way communication through the hailer speaker. The last used VHF channel remains active even while in PA or Fog mode for safety monitoring.
Integrated Voice Scrambler
The GX2400 includes a built-in 32-code voice scrambler for secure, private communication. Compatible with existing Standard Horizon 4-code scramblers, it ensures secure transmissions between equipped handheld or fixed-mount radios on shared frequencies.
