- Description

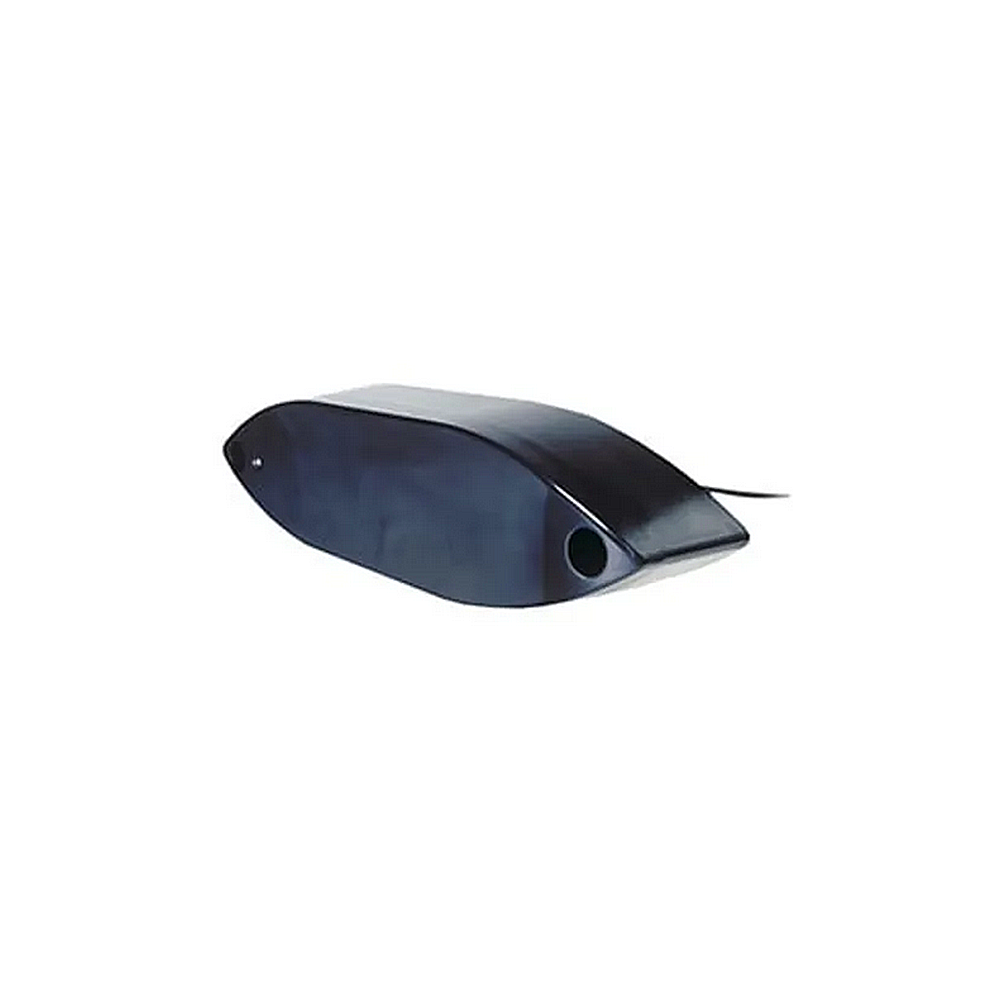

This all-in-one transducer for popular fishing frequencies (28, 38, 50 and 200) is Garmins best performing, highest power, 2 to 3 kW transducer.
It has a depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; a beamwidth of 5x9 to 11x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.
This transducer has a narrow beam low frequencies for deep water performance and high wide frequencies for shallow water performance.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
General Specifications
| Transducer frequency | CHIRP Low (28-60 kHz) & CHIRP High Wide (150-250 kHz) |
|---|---|
| Transducer power | 2-3 kW |
| Transducer beamwidth | Low 5°-9° & High Wide 11°x23° |
| Transducer maximum depth | 6,000 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | Bare Wires |
| Transducer supported deadrise/transom angles |
0°-25° degree deadrise |
Transducer Support
| Transducer frequency | CHIRP Low (28-60 kHz) & CHIRP High Wide (150-250 kHz) |
|---|
