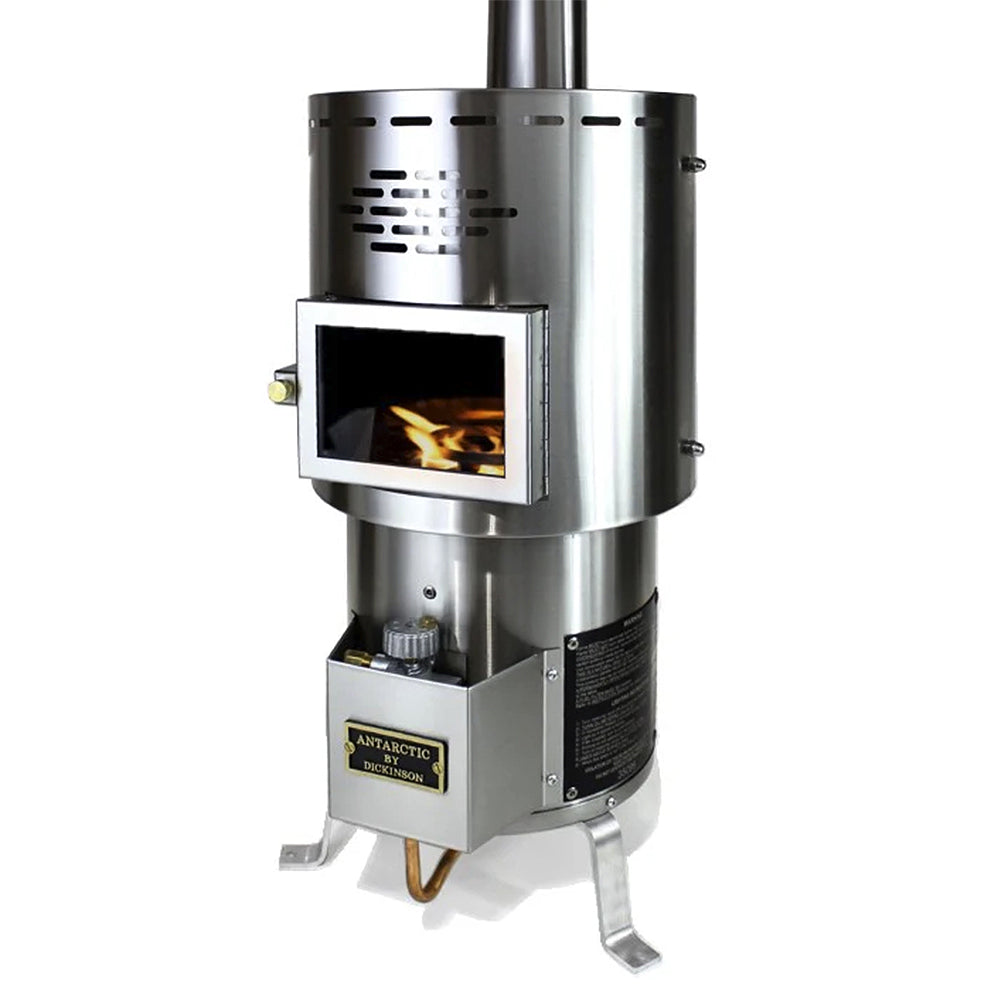

Dickinson Antarctic Diesel Floormount Heater with 12V Fan
The Dickinson Antarctic Floor Mounted Heater is ideal for boats ranging from 35‰ÛÒ40 ft. Its larger size delivers increased heat output while maintaining similar fuel consumption to smaller models. The round design features a large viewing window for easy flame monitoring and adds a modern touch to your cabin.
Product Overview:
- Requires 3‰ diameter chimney parts
- Chimney length: minimum 4 ft, maximum 8 ft (straight runs with no elbows work best)
- For chimneys 6 ft or longer, a barometric damper is recommended
- Requires a permanent fresh air vent in the installation area
- Provides dry heat to help remove moisture from the vessel
- Larger combustion chamber produces more heat than the Alaska and Newport heaters
- For sailboats: must face fore or aft; side mounting requires adjusting the valve to maintain burner feed on heels up to 15å¡
- Includes a 12V draft assist fan (convertible to 24V or 32V) for start-up and high-fire draft assistance
Dimensions:
- Width: 13‰Û?
- Height: 25‰Û?
- Depth: 14‰Û?
- Weight: 27 lbs
Fuel Consumption (24 hr):
- Low: 1.29 gal
- High: 3.20 gal
Heat Output:
- Low: 6,500 BTU
- High: 16,250 BTU
