Corrosion is a silent problem. You cannot see it working, but it can eat a propeller, shaft or lower unit. Marine anodes are your boat’s first line of defence.
This guide explains how marine anodes work and which type you need. You will also learn when to replace them.
Steveston Marine has helped Canadian boaters protect their boats since 1941. We stock anodes for outboards, sterndrives, shafts and hulls, and ship them Canada-wide.
Quick Answer: Use zinc or aluminum anodes in saltwater. Use aluminum in brackish water. Use magnesium in fresh water only. Replace any anode when it is about half worn, and never mix anode metals on one boat.
What Is a Marine Anode?
A marine anode is a small block of metal fixed to your boat. It is often called a “zinc” or a “sacrificial anode.”
The anode is more active than the metals around it. So when corrosion starts, it attacks the anode first. Your propeller, shaft and drive stay protected.
Think of it like a vaccine for your boat’s metal. It takes the hit so the vital parts do not.
How Galvanic Corrosion Works
Galvanic corrosion happens when two different metals sit in water together. The water acts like a battery fluid. A small current flows, and the weaker metal breaks down.
Saltwater carries current very well. That is why corrosion moves fast on the BC coast. Fresh water carries less current, but corrosion still happens.
Warning signs of corrosion:
• White or chalky crust on metal parts
• Pitting on the propeller or lower unit
• Paint bubbling around metal fittings
• Anodes that wear away very quickly

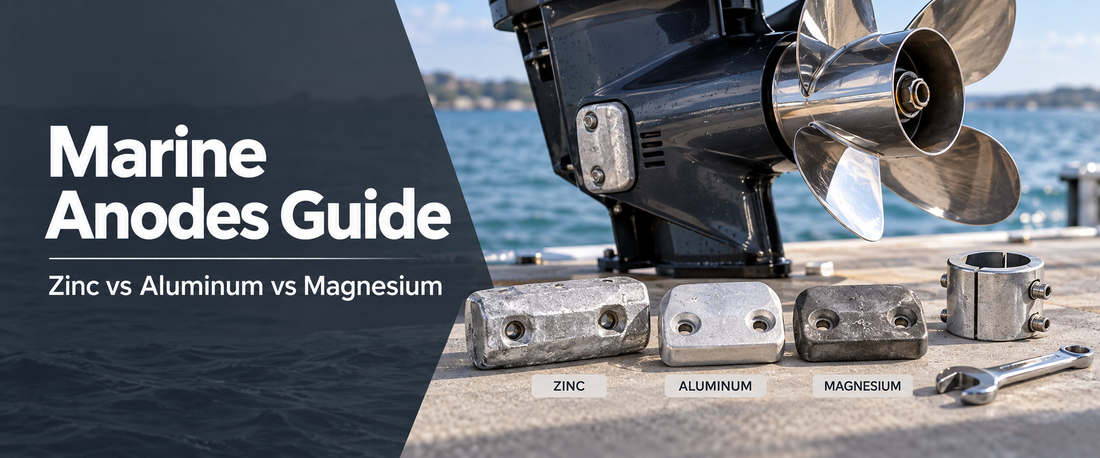

Zinc vs Aluminum vs Magnesium Anodes
The right anode depends on your water. Using the wrong one can leave your boat unprotected.
|
Anode type |
Best water |
Key points |
|
Zinc |
Saltwater |
The traditional choice. Stops working in fresh water, where it forms a coating. |
|
Aluminum |
Saltwater and brackish |
Lasts longer than zinc and protects well in mixed water. A popular all-round choice. |
|
Magnesium |
Fresh water only |
The most active metal. Wears too fast in saltwater and can harm some finishes. |
Which Anode Is Right for Canadian Waters?
Canada has every water type. Here is a simple guide by region:
• BC coast and Pacific waters: Zinc or aluminum.
• Fraser River and other river mouths: Aluminum, because the water is brackish.
• Great Lakes, inland lakes and rivers: Magnesium, or aluminum if your engine maker allows it.
• Boats that move between salt and fresh water: Aluminum is often the safest choice.
Tip: Always check your engine maker’s advice. Some outboards and sterndrives ship with a set anode type.
Where Are Anodes Located on a Boat?
Anodes sit wherever metal meets water. Common spots include:
• Outboard motors: On the trim tab, gearcase and bracket.
• Sterndrives: On the drive, transom plate and trim cylinders.
• Inboards: On the propeller shaft (shaft zinc) and the rudder.
• Hull: A plate anode on the transom or hull bottom.
• Engines: Some have small pencil anodes inside the cooling system.
When you replace anodes, check the fixings around them. Worn prop nuts and thrust washers can loosen shaft anodes and hurt performance.
When to Replace Marine Anodes
The simple rule is to replace an anode when it is about half worn. Past that point, it cannot protect your boat well.
• Check anodes every month in peak boating season.
• Replace all anodes at least once a year.
• Replace them sooner if you keep your boat in saltwater.
• Change them before winter storage if they are worn.
Red flag: An anode that looks brand new after months in the water is not working. It may have poor contact or paint on it. Have it checked.
How to Replace a Marine Anode
Most anodes are easy to change with basic tools.
1. Remove the old anode and its bolts.
2. Clean the mounting surface to bare, shiny metal.
3. Fit the new anode with new hardware if needed.
4. Tighten firmly for good metal-to-metal contact.
5. Do not paint the anode or use thread sealant on the contact area.
While the drive is exposed, inspect nearby seals and parts. Our drive and gearcase parts cover common replacements.
Common Anode Mistakes to Avoid
• Painting over anodes. Paint blocks the anode from working.
• Mixing anode metals. Use one metal type across the whole boat.
• Using zinc in fresh water. It forms a crust and stops protecting.
• Using magnesium in saltwater. It wears out far too fast.
• Waiting too long. A fully worn anode offers no protection.
Buying Marine Anodes in Canada
Choose anodes made for your exact engine or part. A good fit means better contact and better protection.
Steveston Marine stocks anodes for major outboard, sterndrive and inboard brands. Shop marine anodes in Canada and get the right fit for your boat.
We also carry thousands of other parts. Browse our full range of marine hardware in Canada, with free shipping on orders over $120 (some exceptions apply).
Frequently Asked Questions
Which anode is best for saltwater?
Zinc or aluminum. Both work well in saltwater, and aluminum usually lasts longer.
Can I use zinc anodes in fresh water?
No. Zinc forms a coating in fresh water and stops protecting your boat.
How often should I replace boat anodes?
Replace them when they are about half worn. Most boaters replace them at least once a year.
Can I mix zinc and aluminum anodes?
No. Use one anode metal across the whole boat for steady protection.
Why are my anodes wearing out so fast?
Fast wear can mean a stray electrical current or a shore power fault. Have your boat’s wiring checked.
Why is my anode not wearing at all?
It may have poor contact or a coat of paint. A working anode should show slow, steady wear.
Protect Your Boat Before Corrosion Starts
Anodes are small, low-cost parts. But they protect some of the most costly parts on your boat.
Check them often, replace them on time, and match them to your water. Steveston Marine has helped Canadian boaters do this since 1941.
Check your anodes today. A few minutes now can save a costly repair later.
